NewWIN CLIMATIC S500 bioclimatic pergola
Flowgarden · Our own production
Made-to-measure terrace pergolas for your home and garden
We design and build your terrace pergola to your dimensions – aluminium, wooden or bioclimatic with a rotating louvre roof. We prepare the structure for rotating louvres during manufacture, so you do not have to add shading later. We measure on site, manufacture and install in Slovakia and the Czech Republic.
Aluminium and woodAluminium and wooden structures
100+Made-to-measure pergolas built
Made to measureBuilt to your dimensions
SK & CZSupply and professional installation
Protect your space
What bothers you on your terrace?
What helps
What helps
What helps

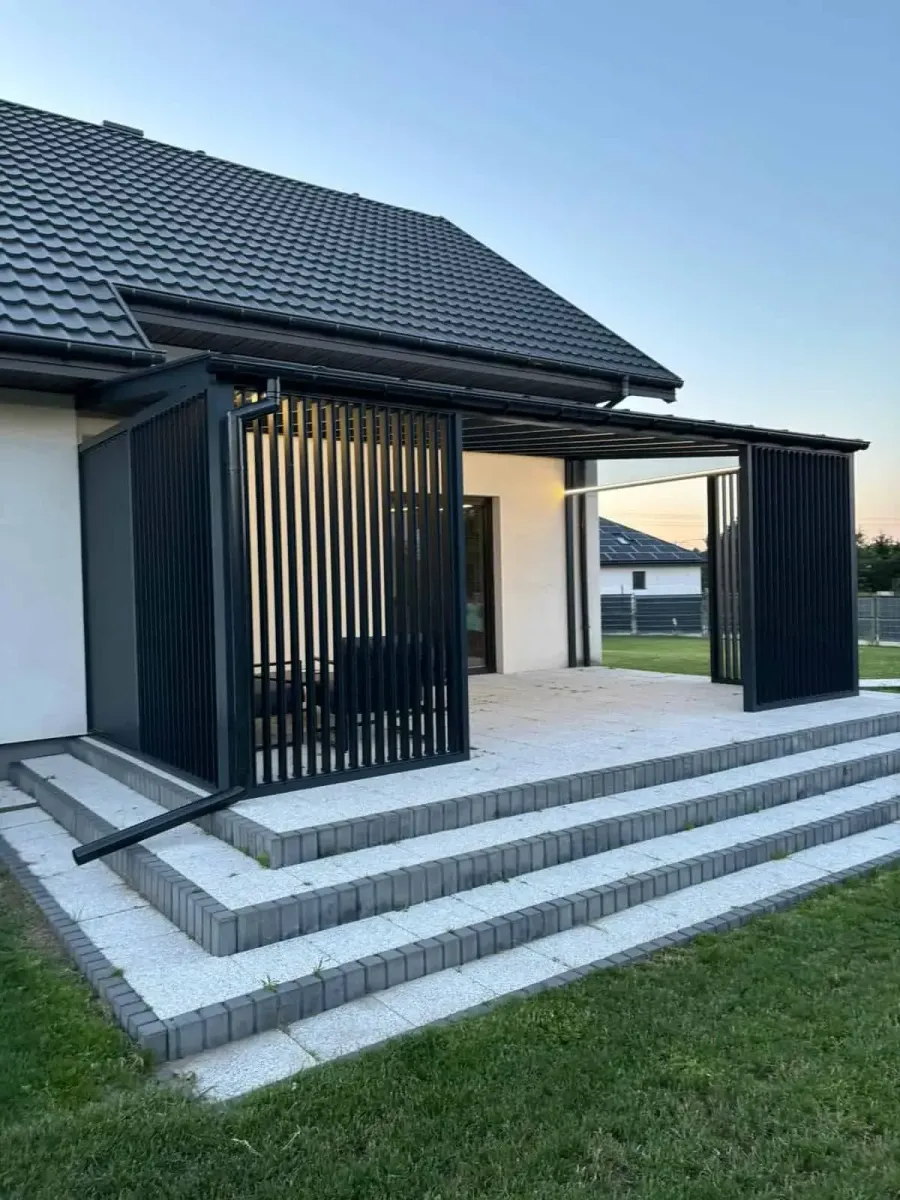

Pergola types
Aluminium, wooden and bioclimatic pergolas.
We design and build your pergola to your dimensions – from simple canopies to oversized structures. You choose the material; we take care of fabrication, surface finish and installation.

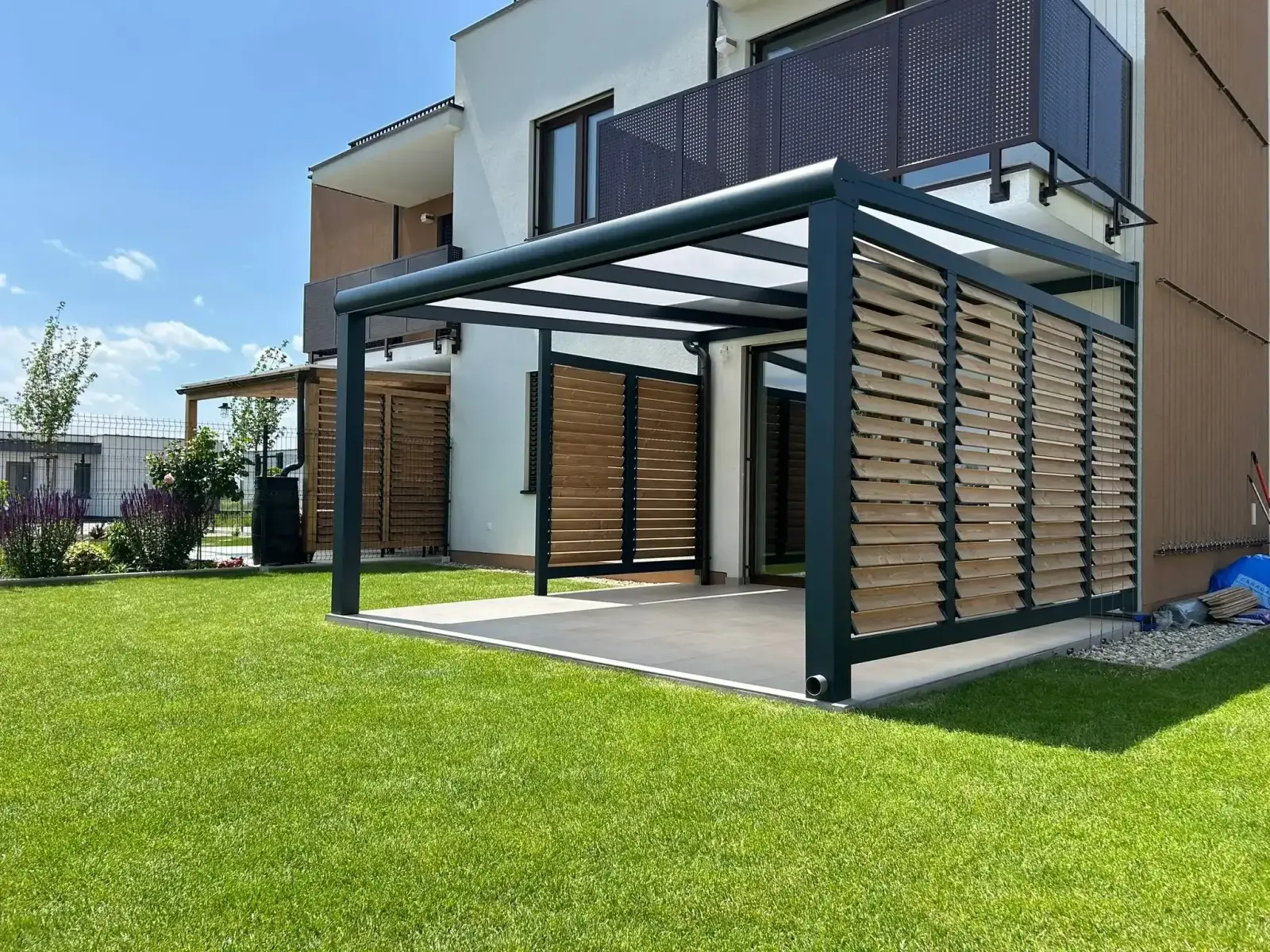

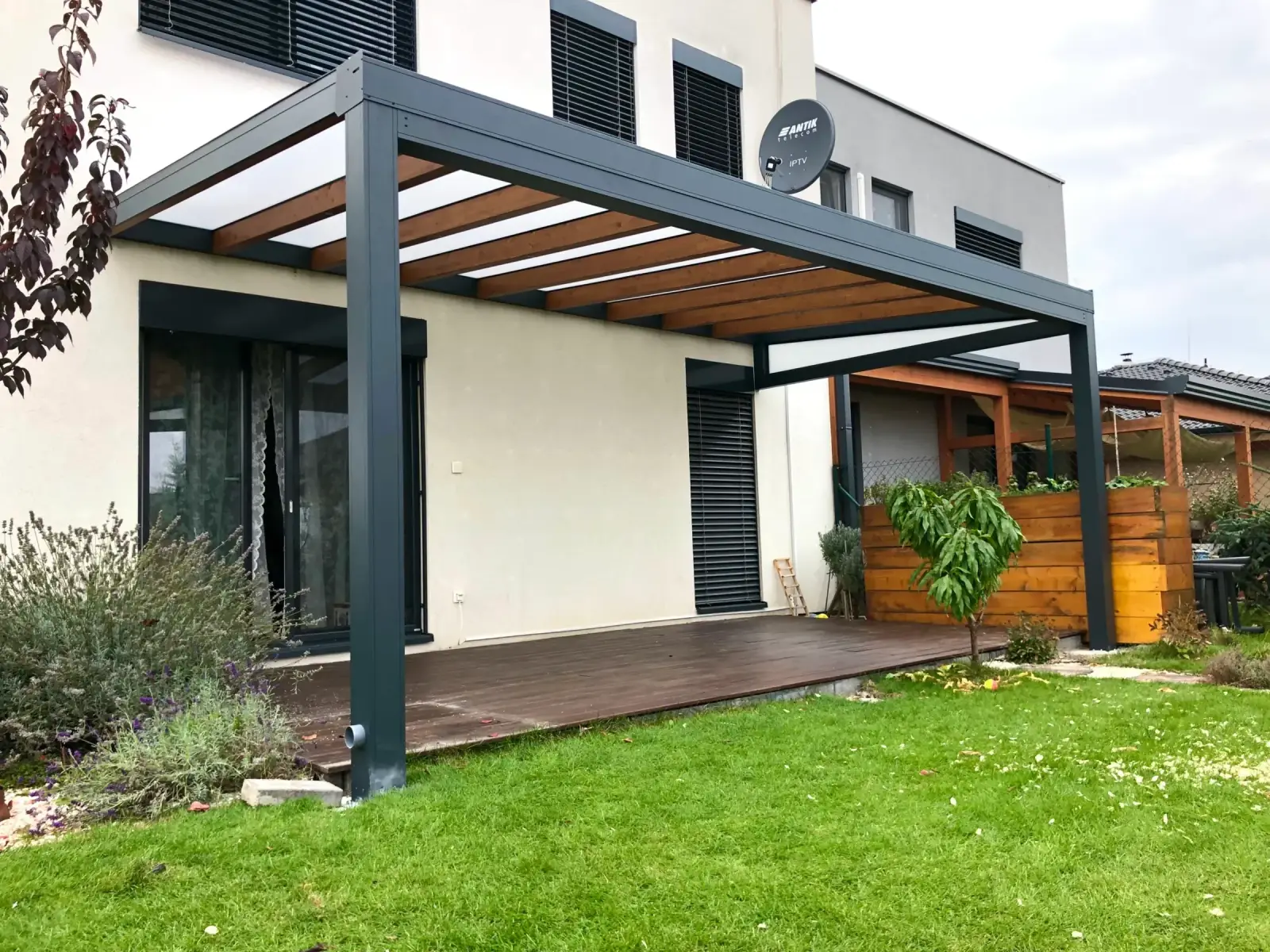

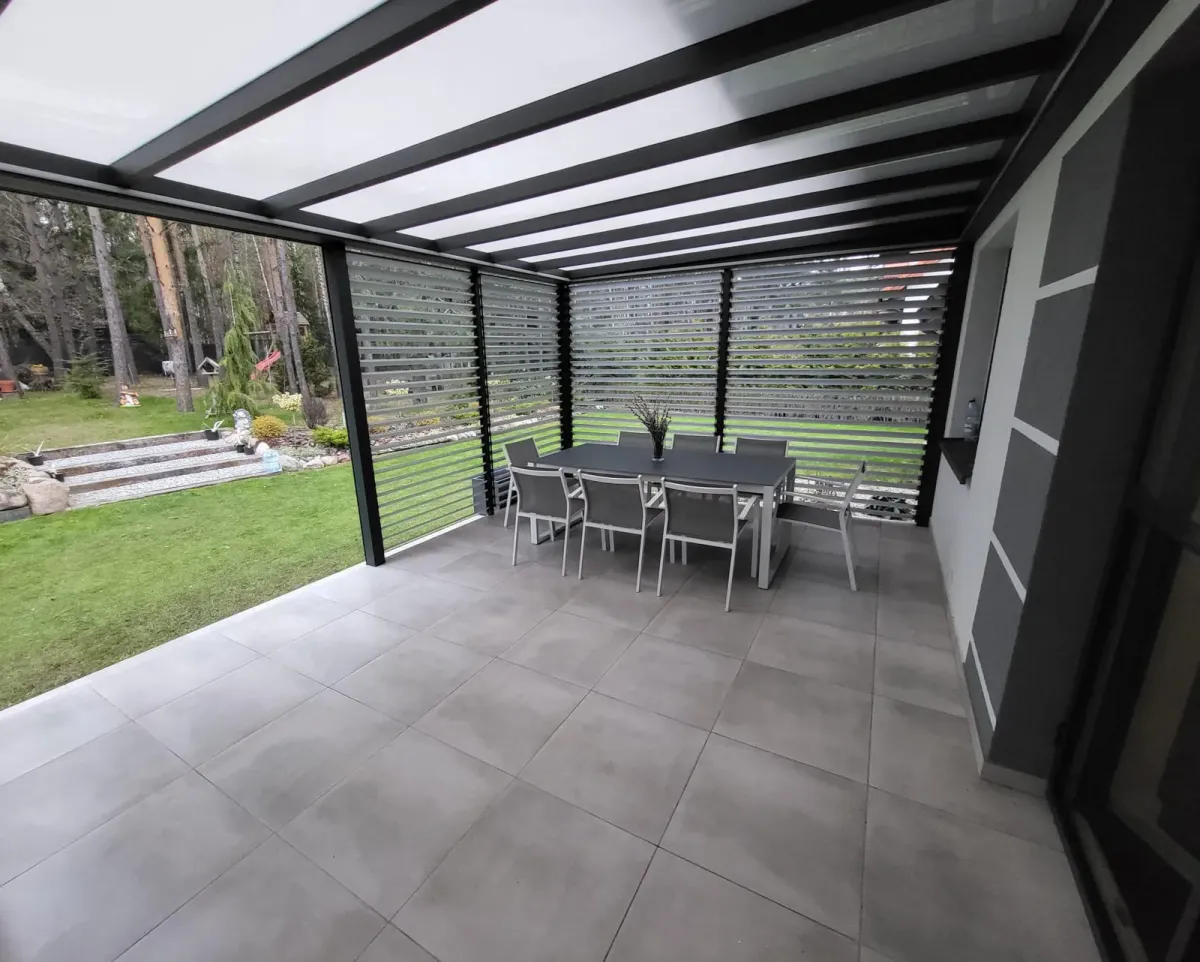

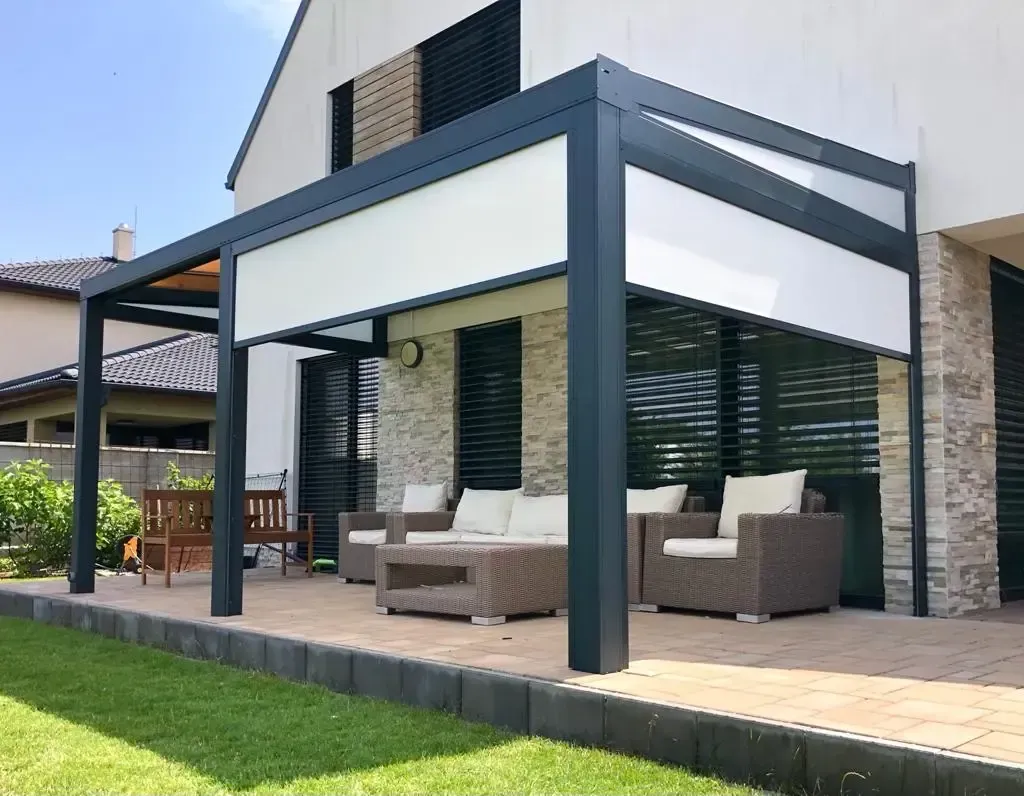

01Aluminium pergolas

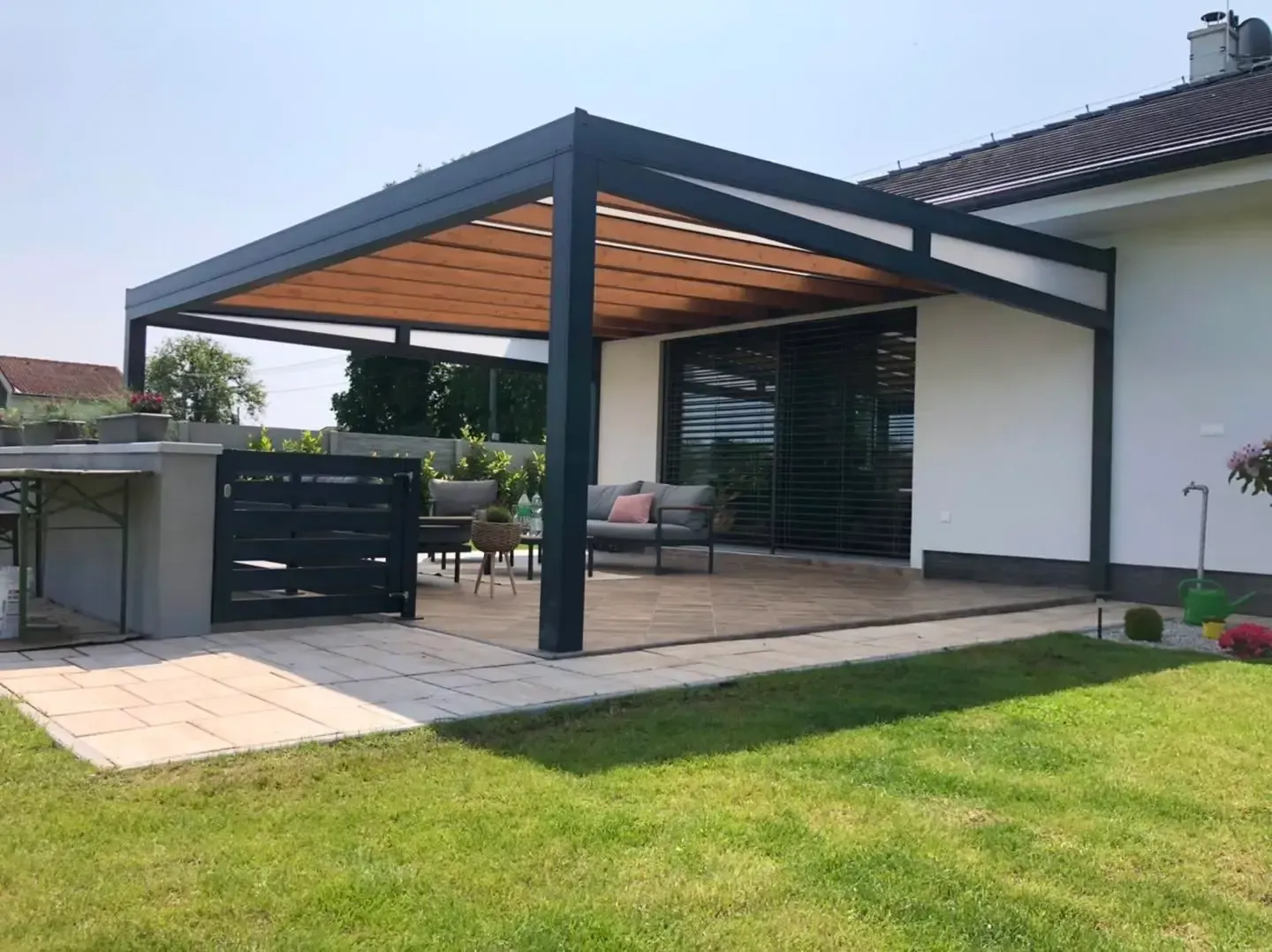

Aluminium profiles with 136 × 136 mm or 140 × 110 mm posts, depending on the type of structure, and a polycarbonate roof. Anthracite RAL 7016 as standard, any RAL colour on request.
Aluminium pergolas

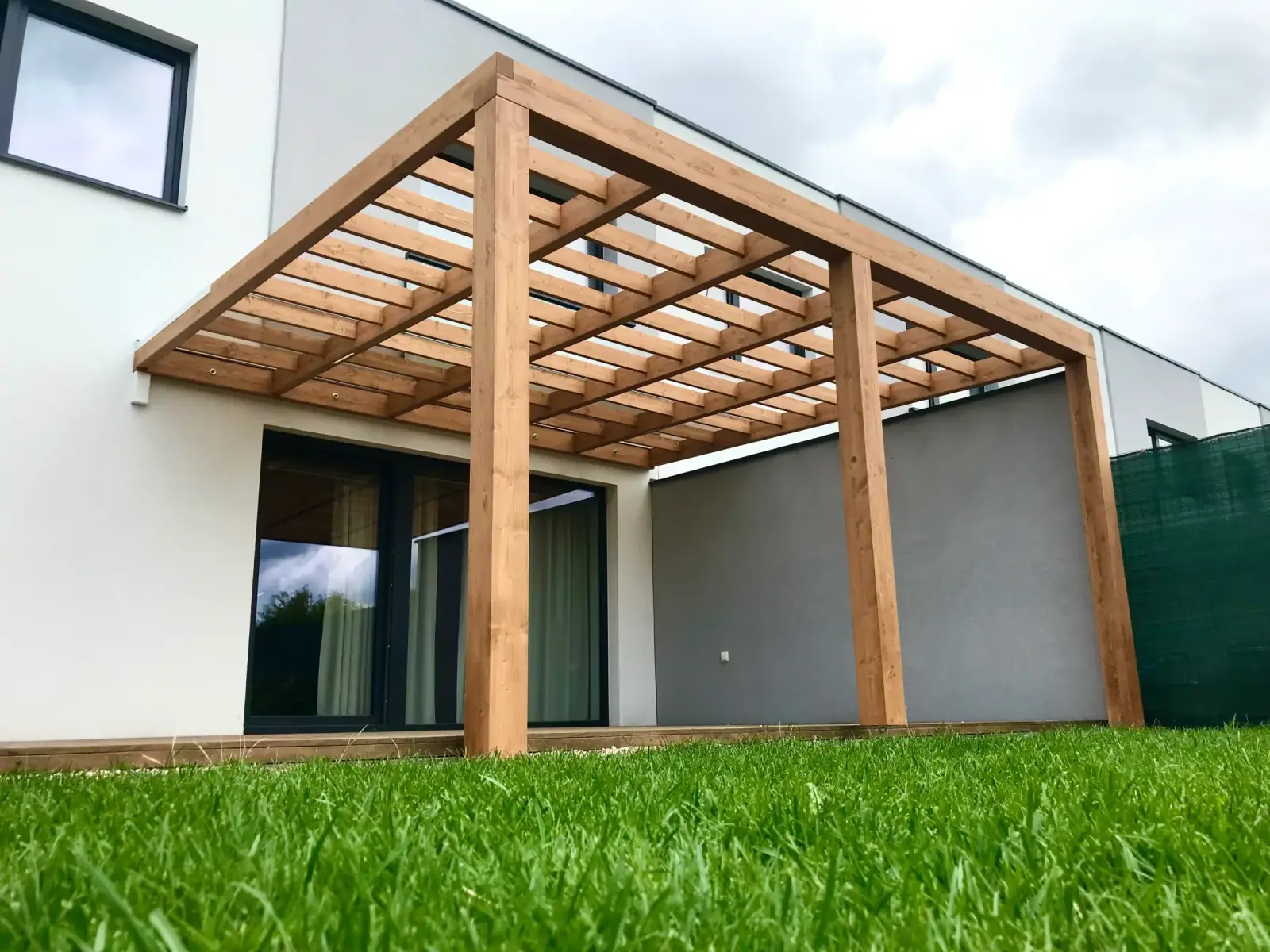

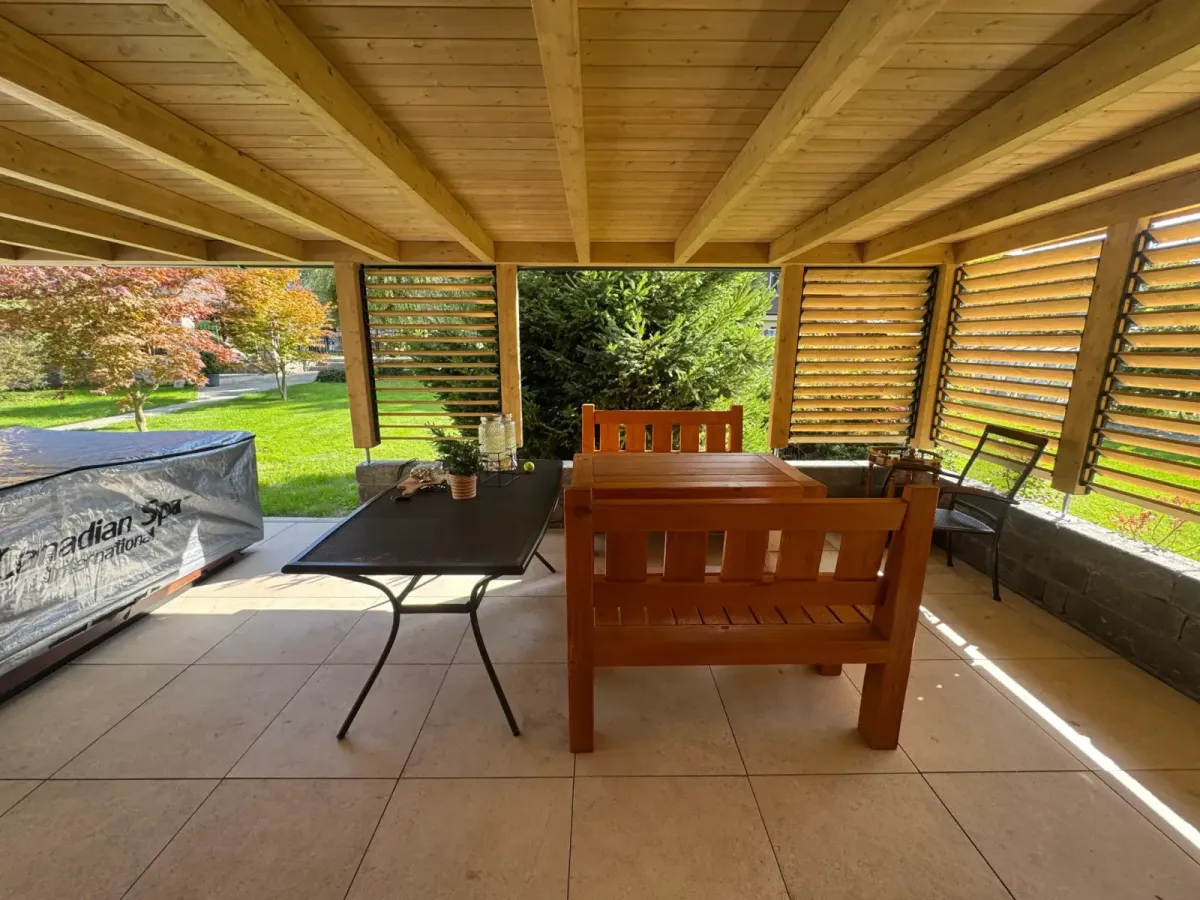

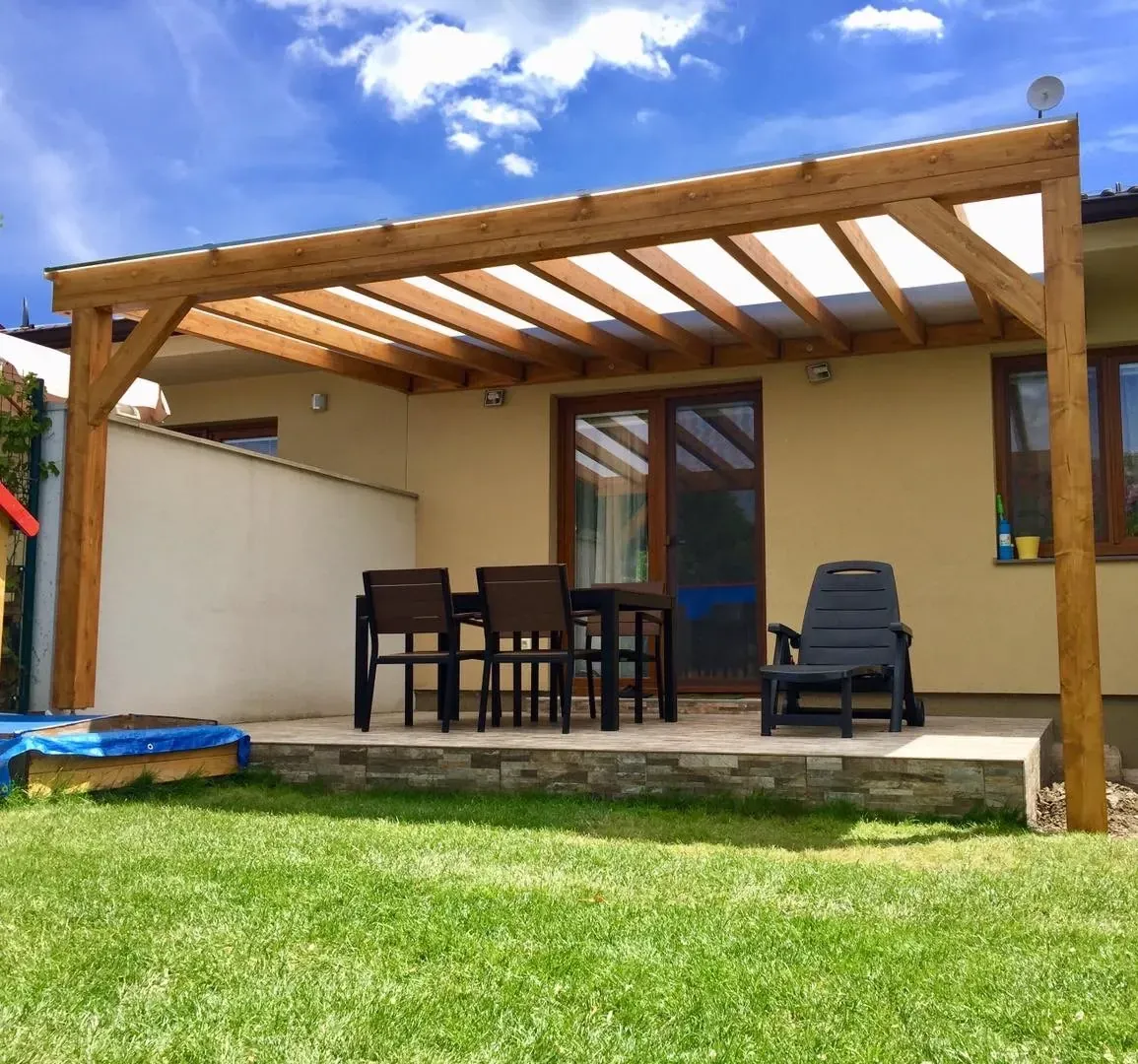

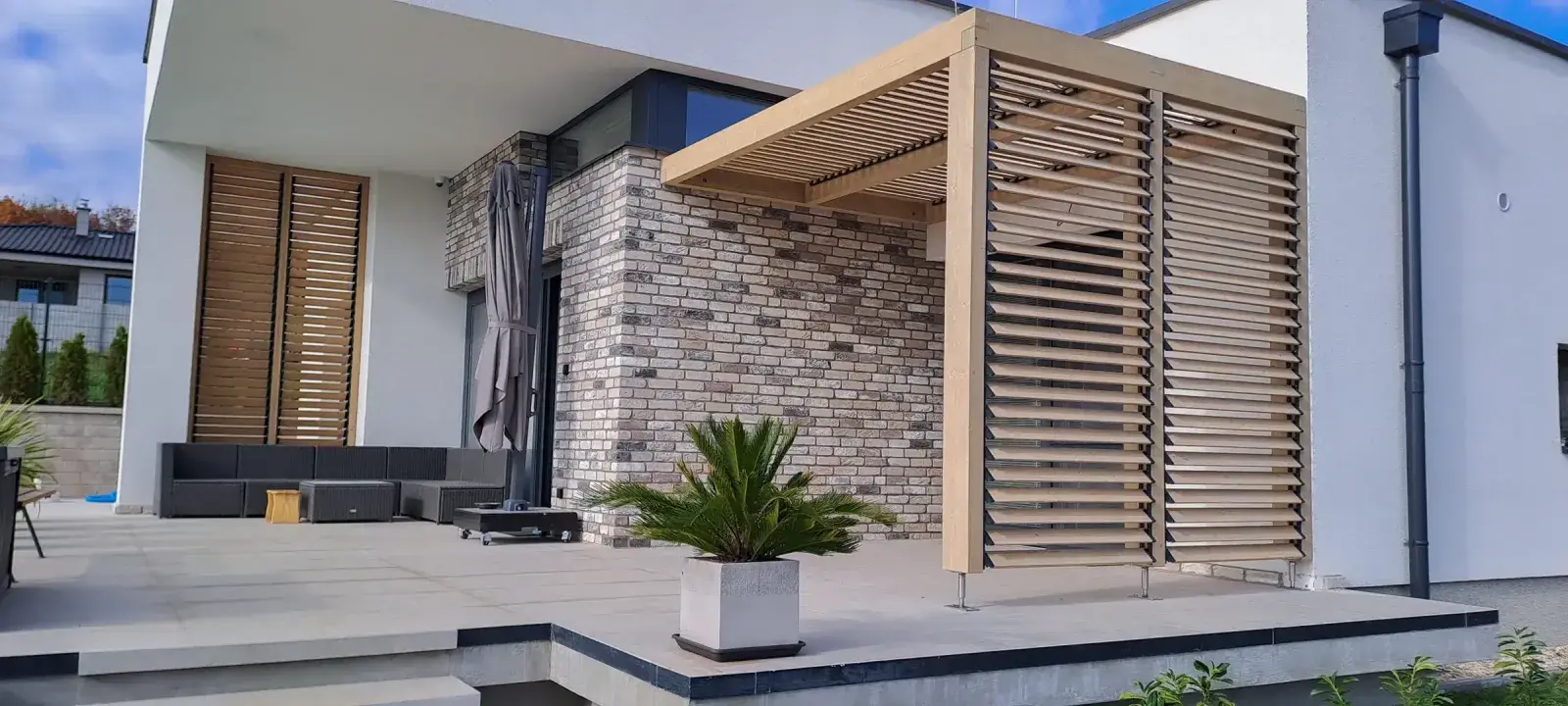

02Wooden pergolas
A structure made of glued laminated BSH spruce beams, finished with Remmers wood stain. You renew the stain once every 3 – 5 years, depending on the weather.
Wooden pergolas
New

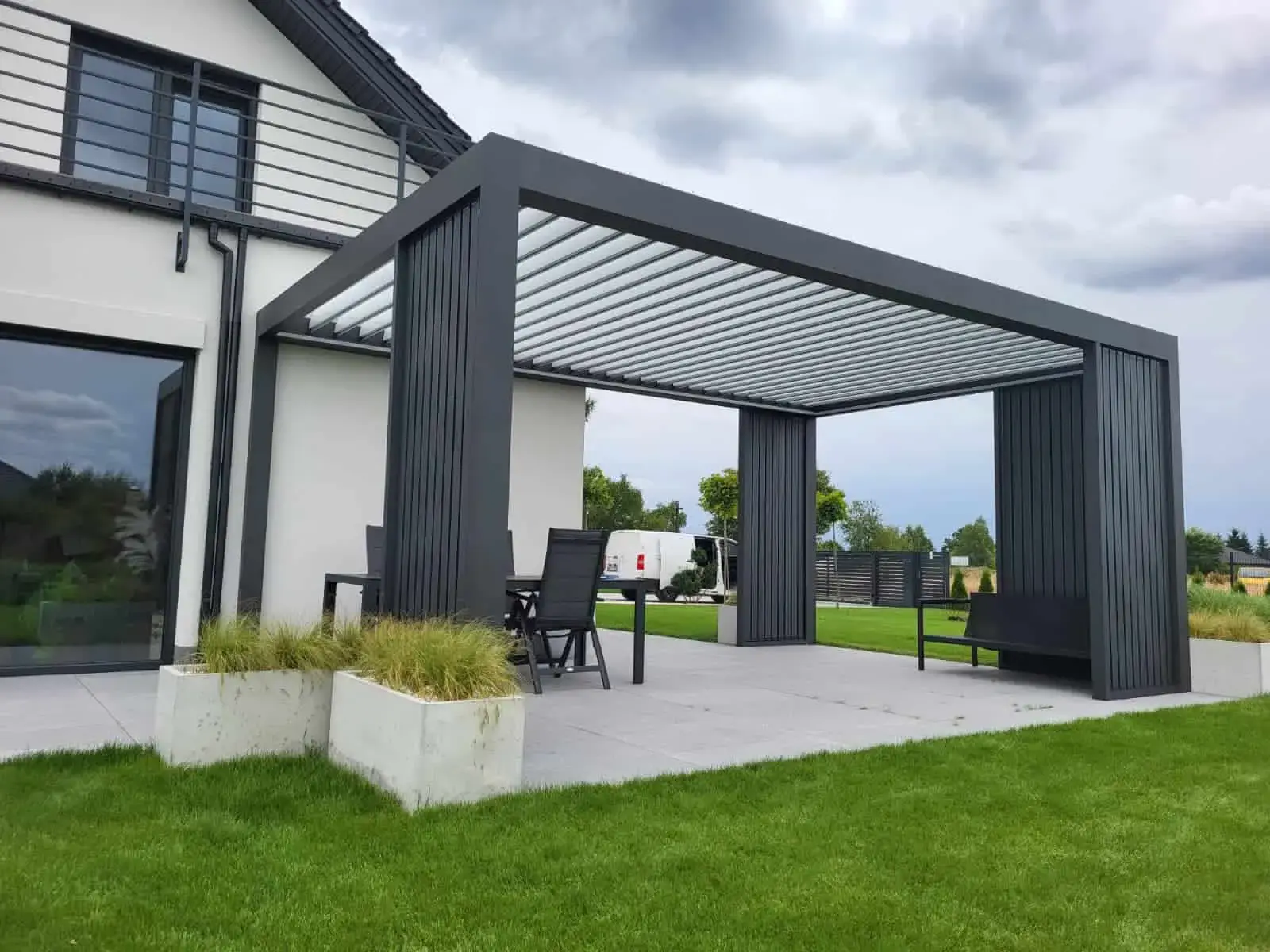

03S500 bioclimatic pergolas
The WIN CLIMATIC S500 model. Motorised rotating louvres 0 – 135°, integrated drainage and a snow load capacity of up to 318 kg/m².
S500 technical data
| What you are comparing | Aluminium | Wooden | Bioclimatic |
|---|---|---|---|
| Structure | aluminium profiles, posts 136 × 136 mm or 140 × 110 mm depending on the type of structure | glued laminated BSH spruce beams, posts 12 × 12 cm, rafters 8 × 12 cm | aluminium profiles, frame 240 × 130 mm, posts 130 × 130 mm with steel reinforcement |
| Surface finish | powder coating, anthracite RAL 7016 as standard | Remmers wood stain | Tiger powder coating, white or anthracite included, any RAL colour or wood-effect finish at extra cost |
| Maintenance | rinse with water as needed | renew the stain once every 3 – 5 years | rinse with water as needed |
| Roof | 16 mm multiwall or 8 mm solid polycarbonate (white, clear, bronze), integrated drainage | multiwall or solid polycarbonate | rotating louvres 0 – 135°, motor, rain, wind, snow and temperature sensors |
| Outdoor shading | pre-installation or fitted at the factory | pre-installation or fitted at the factory | pre-installation or fitted at the factory |
| Made-to-measure manufacture | yes | yes | yes |
| Anchoring | attached to the house or free-standing | attached to the house or free-standing | attached to the house or free-standing |
| Largest span | 9 × 5 m free-standing, 12 × 5 m attached to the house | according to the project | 1 module up to 5 × 8 m, 2 modules up to 9.9 × 8 m (76.73 m²) |
We design the dimensions, number of posts and anchoring method for each specific location. We will send you the exact price in a quote once you send us your dimensions.
More hours outdoors. In any weather.
New

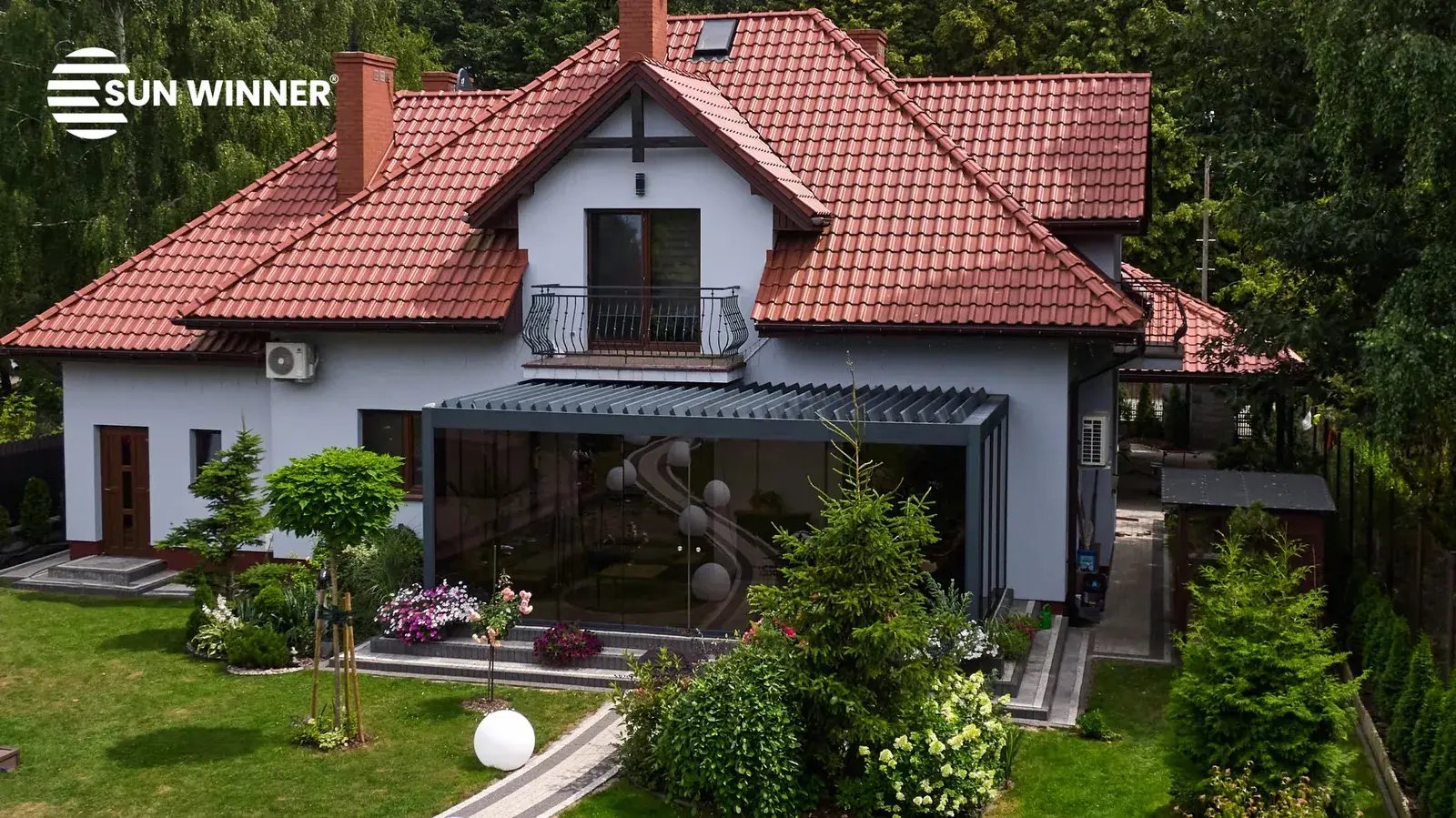

Bioclimatic pergola WIN CLIMATIC S500
An aluminium roof of rotating louvres that you open or close depending on the weather.
Why Flowgarden
Pergola and shading from a single supplier.
We design the pergola and the rotating louvres together, so the structure is ready for shading from the start. Nothing has to be added later, and you do not have to sort out louvre anchoring after installation.
- On-site measurement, made-to-measure manufacture, installation by our own people
- RAL powder coating or Remmers wood stain, depending on the material
- Preparation for rotating louvres built into the structure
- Sliding glazing and screen blinds for your pergola
Pergolas & LouvresWhy plan shading architecture at the design stage?I want to know more
Louvre tilting
Try it right here.
See how rotating louvres could look and work on your terrace. Drag the slider – from closed through half-open to tilted over.
0°Closed0°Closed10°Closed20°Open30°Open40°Open50°Open60°Open70°Open80°Open90°Open100°Open110°Open120°Tilted over130°Tilted over140°Tilted over
How it works
From measurement to a finished made-to-measure pergola.
- 01
Measurement
We come to you, measure the space and go through the options, including the connection to the house.
- 02
Design and quote
We propose the dimensions, material and colour. You get a quote that includes a shading option.
- 03
Manufacture
We make the structure to measure and finish the surface – RAL powder coating or wood stain.
- 04
Installation
Our own people build the pergola. We only leave when everything works and the site is tidy.
Get inspired by our projects.
FAQ
Frequently asked questions about made-to-measure pergolas.
What is the S500 bioclimatic pergola?
WIN CLIMATIC S500 is an aluminium pergola with a rotating louvre roof. The louvres, spaced at 250 mm, tilt from 0 to 135°, so you can choose between shade, a breeze and a closed roof when it rains. The frame has a 240 × 130 mm cross-section, the posts are 130 × 130 mm with steel reinforcement and concealed screw joints. The wiring and motor are concealed as well.
How much snow can the S500 pergola carry?
Up to 318 kg/m², depending on the size and model of the structure – the larger the span, the lower the value. Wind resistance is 80 km/h for terrain categories II, III and IV. In addition, the snow sensor opens the louvres automatically so the roof is not loaded.
What sensors and controls does the S500 have?
The rain sensor closes the louvres when it rains, the wind sensor opens them in strong wind, the snow sensor prevents the roof from being loaded and the temperature sensor tilts the louvres when the temperature drops below 3 °C so the seals do not freeze. You control the pergola with a remote control, or via phone and tablet at extra cost. All the automation is programmed at the factory.
What extras are available for the S500 pergola?
LED lighting in the louvres and in the gutter, spotlights and vertical lamps with a light colour of 3 000 K or 4 000 K, heaters, Bluetooth audio, sockets and USB built into the posts. The sides can be closed with WIN GLASS sliding tempered glass, WIN SCREEN zip screens up to 7 000 mm wide or WIN PANELS aluminium panels.
What is the largest pergola you can build?
We build free-standing aluminium pergolas with a polycarbonate roof up to a span of 9 × 5 m, and pergolas attached to the house up to 12 × 5 m. The S500 bioclimatic pergola covers up to 40 m² in a single module at a width of 5 000 mm and a projection of 8 000 mm, and up to 76.73 m² in two modules with a central post at a width of 9 900 mm. Any number of modules can be joined.
What is the roof of an aluminium pergola made of?
Polycarbonate – 16 mm multiwall or 8 mm solid, in white, clear or bronze. Rainwater drainage and the gutter are integrated into the structure; the joints are covered and sealed with F profiles.
Which colours can I choose?
The standard is a fine-textured powder coating in anthracite RAL 7016. We also regularly supply graphite, anthracite, grey and brown. On request, we coat in any colour from the RAL chart.
What needs to be prepared before installation?
Concrete footings measuring 30 × 30 cm and 50 to 70 cm deep – for both free-standing pergolas and pergolas attached to the house. A pergola attached to the house is also anchored into the building's outer wall. The free-standing version has two extra posts and a structural reinforcing profile. We will go through exactly what is needed with you during the measurement visit.
What types of pergolas do you make?
Aluminium, wooden and bioclimatic. Aluminium pergolas have 136 × 136 mm or 140 × 110 mm posts depending on the type of structure and a polycarbonate roof; the wooden one is made of glued laminated BSH spruce beams with Remmers wood stain; and the bioclimatic one has a motorised rotating louvre roof.

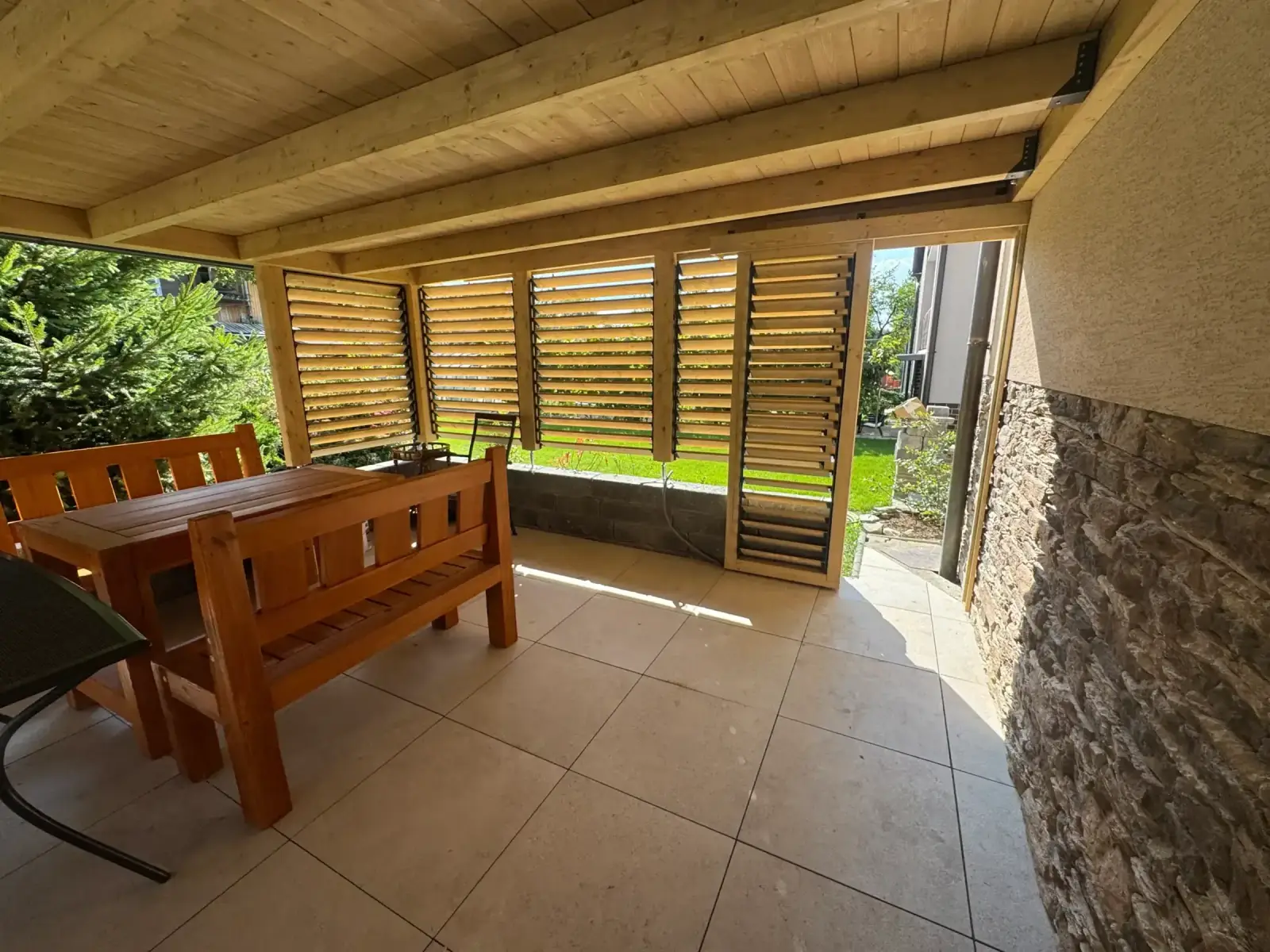

Can side shading be added to a pergola?

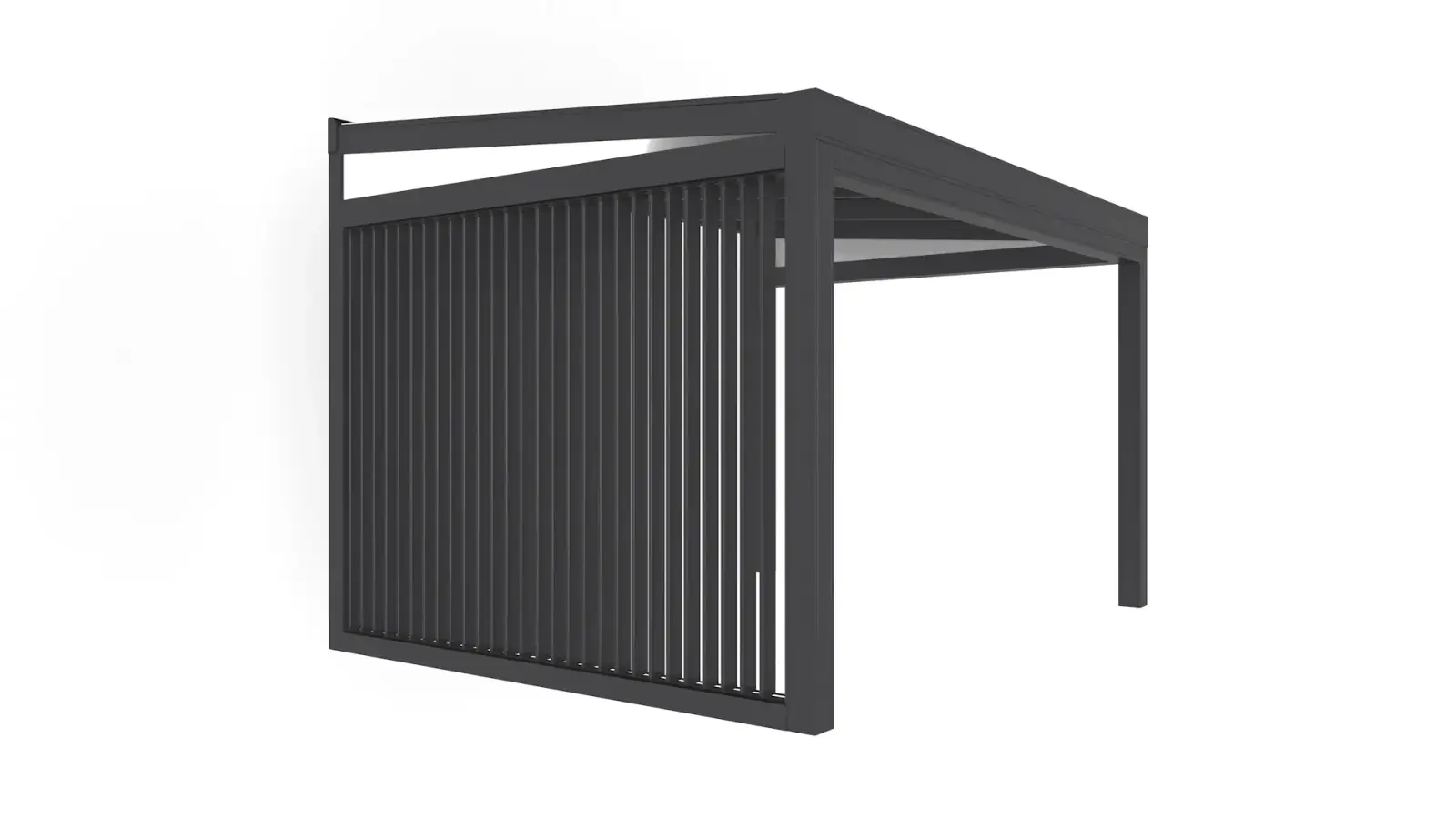

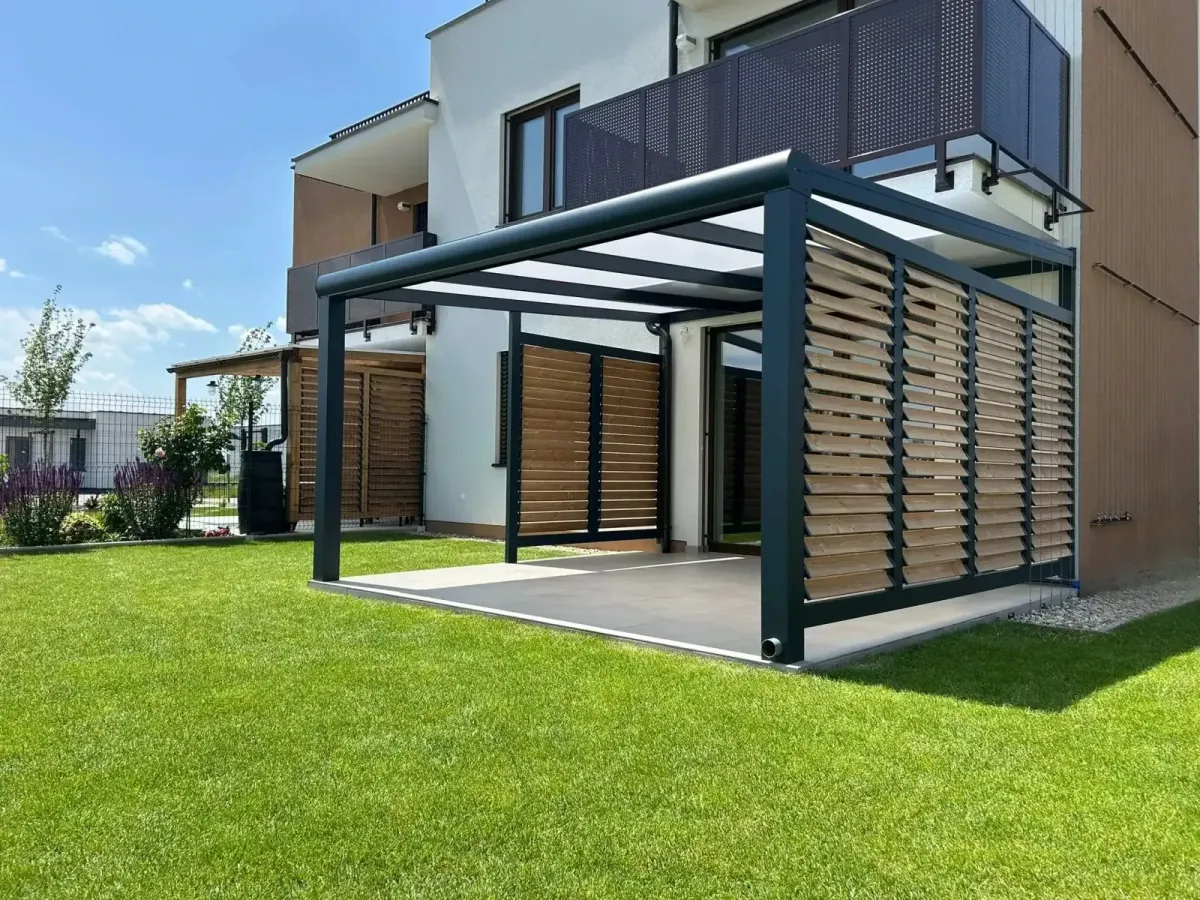

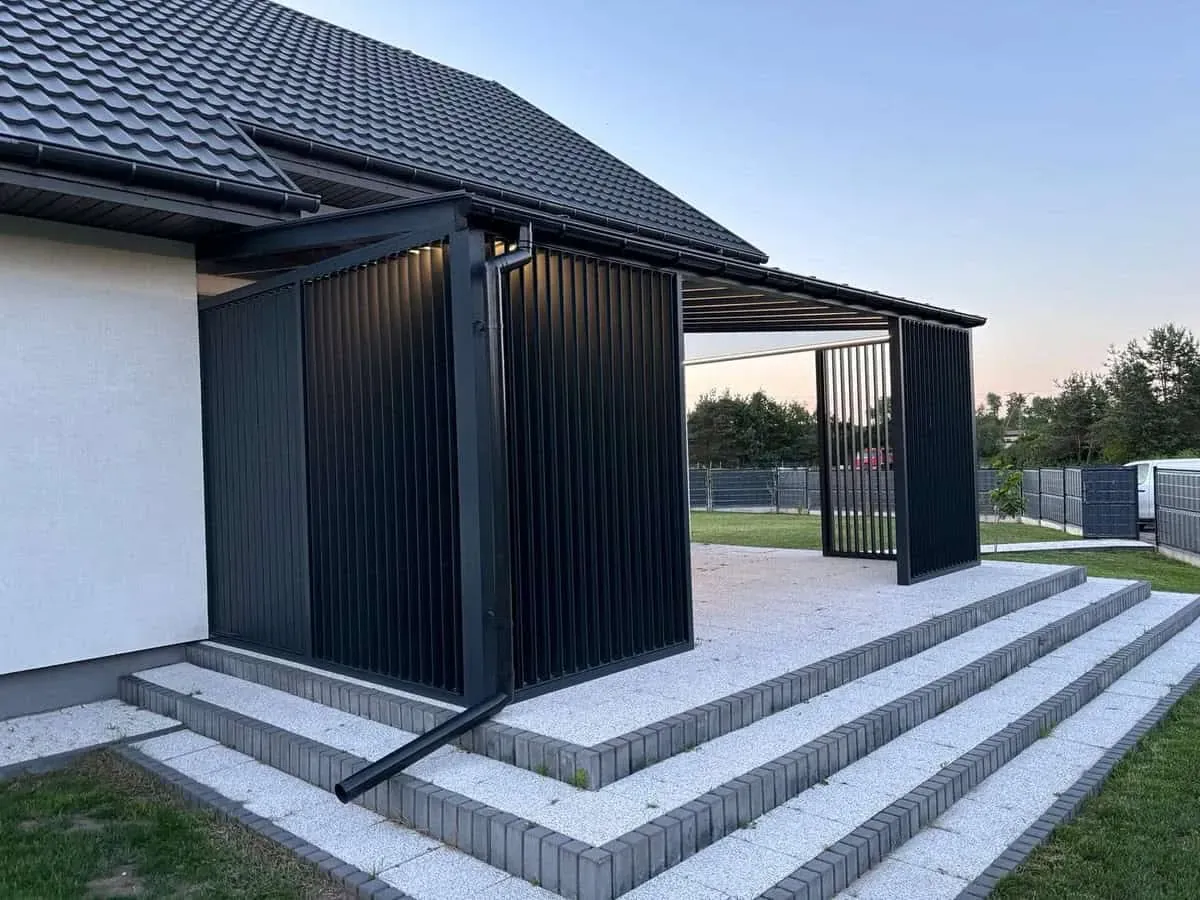

Yes. We design the pergola and the rotating louvres together, so the structure is ready for shading from the start. The louvres tilt from 0 to 140°, so you decide how much light and view you keep. The pergola roof deals with the midday sun, the side louvres with the morning and evening sun, when it is low and shines in under the roof.
Do you make pergolas to measure?
Yes, every structure is built to the dimensions of the specific location – from simple canopies to oversized solutions. You also choose the anchoring: the pergola can be attached to the outer wall of the house or free-standing. We take the measurements on site at your home.
What maintenance does a pergola need?
An aluminium structure is never painted – aluminium does not corrode and the powder coating keeps its colour; just rinse it with water when needed. The polycarbonate roof and the gutter are cleaned the same way. On a wooden pergola, you renew the stain once every 3 to 5 years, depending on the weather.
Where do you install?
Throughout Slovakia and the Czech Republic. We handle the measurement, manufacture and installation ourselves – our own people build the pergola.
How does ordering work?
In four steps: we come to measure the space, send you a design and a quote, make the structure to measure and finish its surface, and finally build it at your home.
How much does a pergola cost?
The price depends on the dimensions, material, surface finish and whether you also want side shading. We will send you the exact price in a quote once you send us your dimensions. The quote and the measurement visit are free.
