Combined louvres:

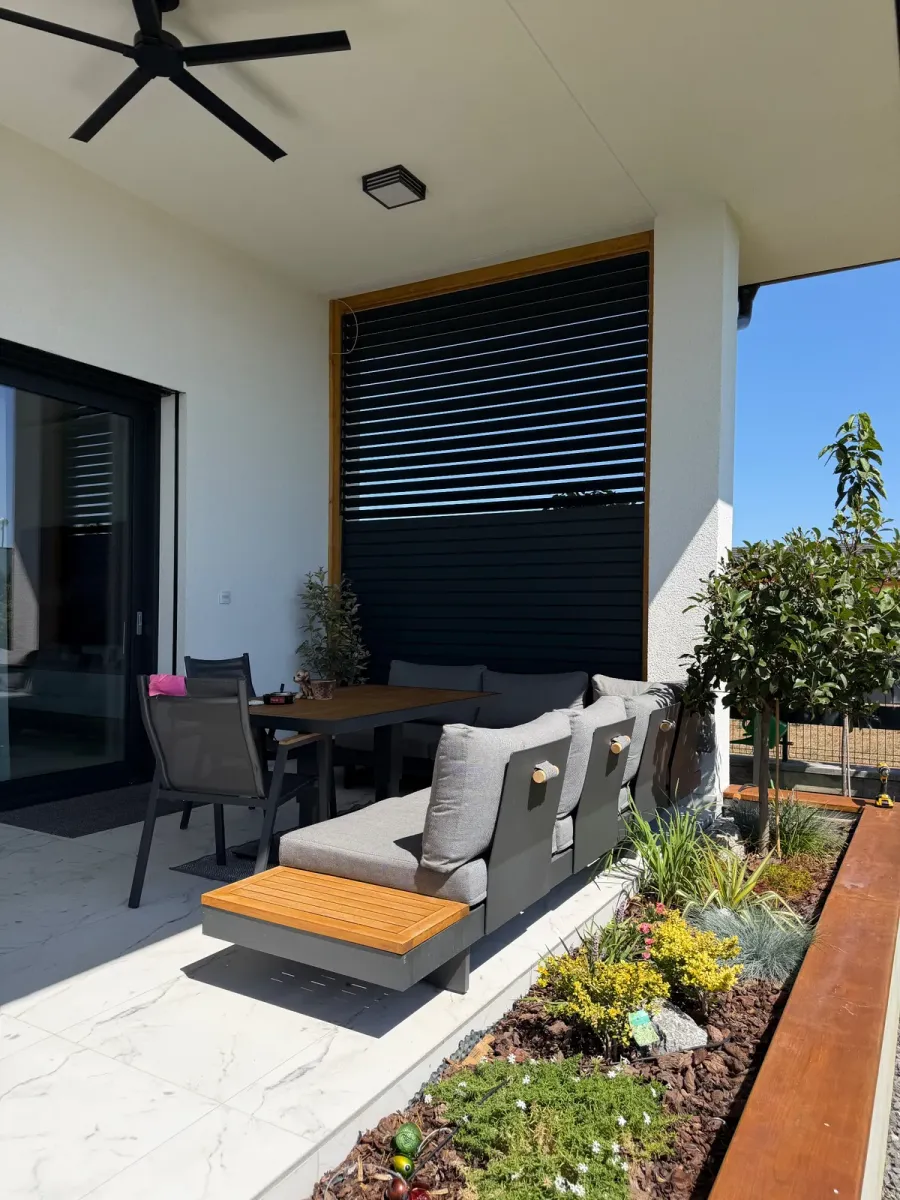

Wooden frame and aluminium louvres
A solid wooden frame made of BSH spruce beams combined with classic or interlocking aluminium louvres.
This pairing offers the best of both worlds – the warmth and authenticity of natural wood for the frame and the maintenance-free durability of aluminium for the louvres. Ideal horizontal louvres for terraces and pergolas.
Protect your space
What bothers you on your terrace?
What helps
What helps
What helps
Why combine wood and aluminium?
The best of both materials in one system
This pairing offers the best of both worlds – the warmth and authenticity of wood for the frame and the maintenance-free durability of aluminium for the louvres.
The natural look of a wooden frame
Solid visual-grade BSH spruce beams give your pergola an authentic natural character. The wood can be finished with a stain in a shade that matches your exterior.
Louvre choice: classic or interlocking
The cascading profile of the classic louvre, or the interlocking profile for a flat surface without gaps. We supply classic louvres in wood-effect finishes and RAL colours, interlocking louvres in RAL colours.
Maintenance-free aluminium louvres
Unlike wooden louvres, aluminium ones do not warp or deform. They never need recoating – just rinse them with water and they look like new. Powder coating keeps the colour stable whatever the weather.
You only paint the frame
You renew the stain on the wooden frame once every 3–5 years. The louvres never need recoating – just rinse them with water when needed.
Design your louvre screen
Width 1000 mm × height 2000 mm · Louvres: 18 · System pairs: 4
Frame, louvres and rotation system
Click a part of the louvre system to see what it is made of. Set the louvre angle with the slider.

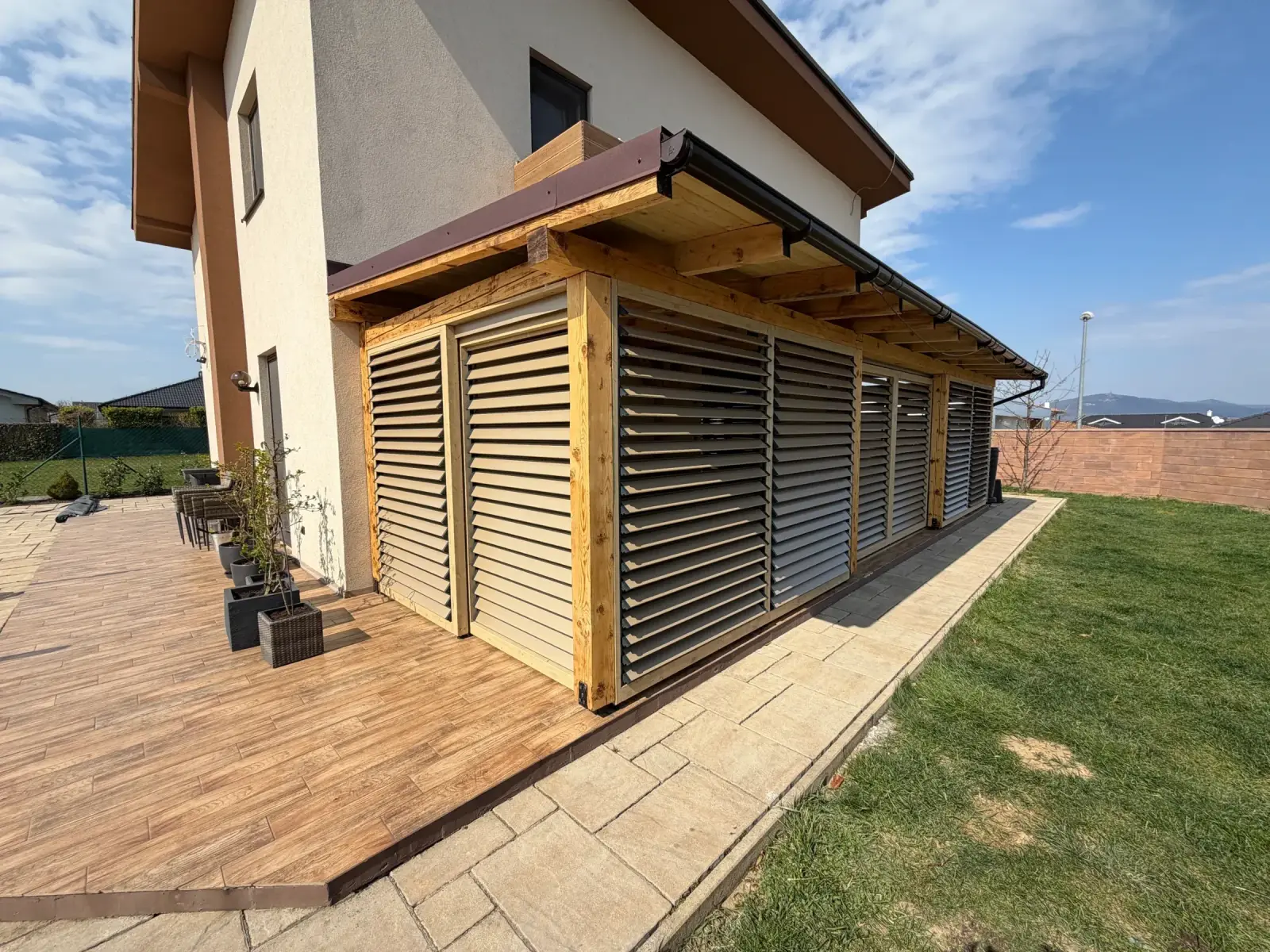

Solid BSH timber frame
The load-bearing structure is a frame made of visual-grade glued laminated BSH spruce beams. Gluing in layers means the frame does not warp or crack. The wood stain protects it from the weather and brings out the grain.
- 80 × 80 mm profile – sturdier, used for sliding frames and free-standing structures
- 80 × 40 mm profile – slimmer, between existing posts or for several bays side by side
- Hybrid 80 + 40 mm frame – one leg stronger where the structure requires it
- Adjustable feet of 1–5 cm – they level out the slope and keep the wood off the paving
Interlocking louvre: a continuous surface
The louvres are shaped to fit into each other when closed and form a flat surface without gaps. We make the interlocking louvres ourselves, and they are reinforced inside with grooves for greater stability and strength.
- Maximum louvre length 3 m
- A flat surface without gaps when closed
- Reinforced inside with grooves
- Powder coating in any RAL colour
Classic louvre: a cascade
When closed, each louvre partly overlaps the next, creating a cascade effect. We supply classic louvres in a wood-effect finish or in any RAL colour.
- Maximum louvre length 2 m
- Cascading arrangement
- Walnut, Golden oak and Light oak wood-effect finishes
- Powder coating in any RAL colour
SAM KIT rotation system: one pair for 5 louvres
Number of louvres: 18. Number of rotation system pairs: 4. One pair operates up to 5 louvres; the last module is shortened as needed. Joined modules tilt the louvres together.
- One pair for 5 louvres, on the left and right of the frame
- The louvre is simply inserted into the system, not drilled
- Turn one louvre by hand and they all tilt
- Motor as one of the optional extras
Flexible shading
Ordinary shading has one position. Ours has infinitely many.
With ordinary shading, the louvre angle or position is fixed in advance. Our solution lets you tilt the louvres from 0° to 140° – keep them fully closed for complete privacy or set them to exactly the angle you want.
- Protection from sun, wind and rain
- Privacy on your terrace, gazebo or balcony
- Fixed, pivoting and sliding frame options

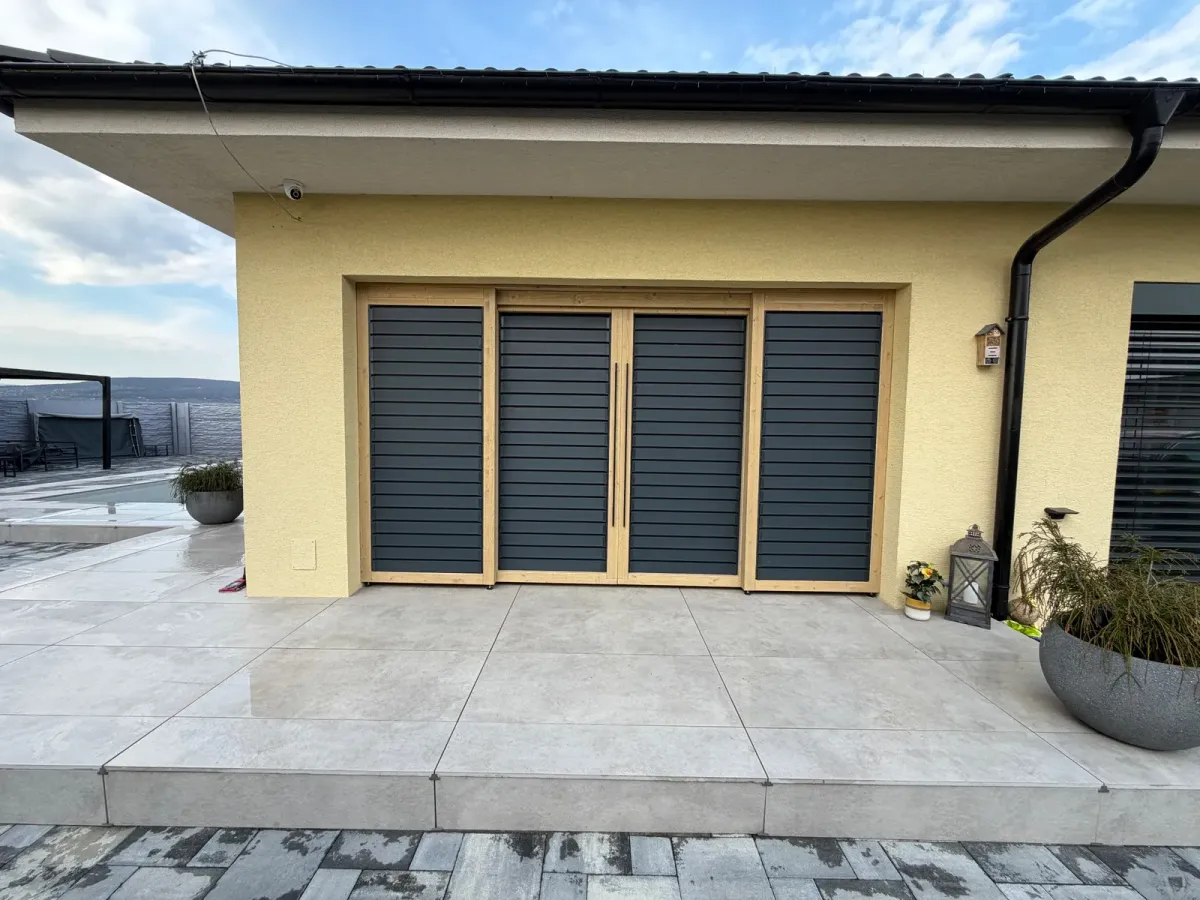

Sliding systems
Frames that slide
A frame does not have to stay in one place all season.
The sliding version lets you move the shade to wherever you need it – and when you do not need it at all, slide the frames together and the view is clear. We offer two versions that differ in how the frame is guided: it either hangs from the top or also runs in a floor guide. The choice depends on the frame width, the number of bays and whether you want the floor completely clear.

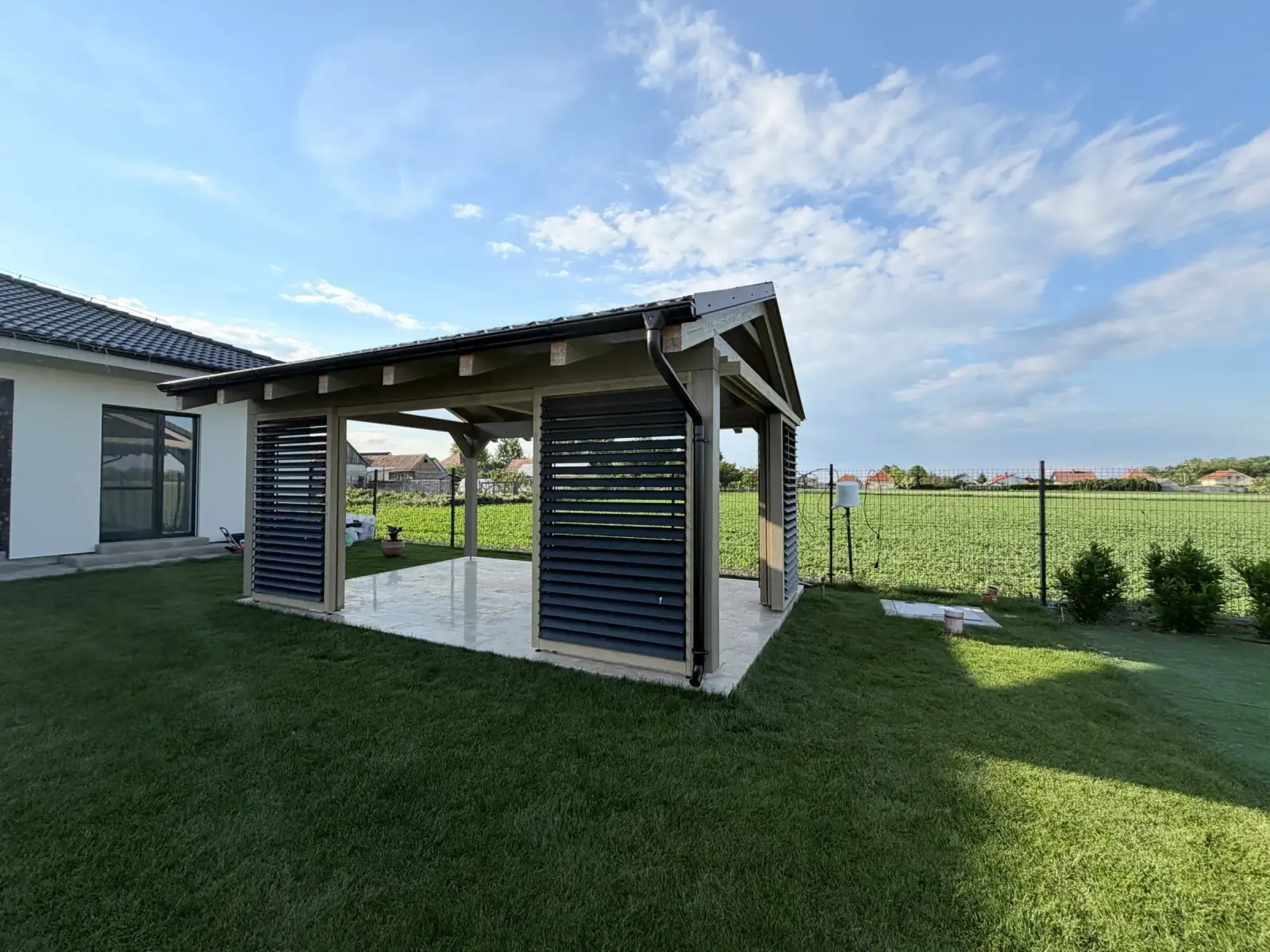

Top-hung guide
The frame hangs from the top profile and slides to one side. There is nothing in the floor, so the passage is step-free. For stability and smooth running, the maximum louvre width with a top guide is 1.2 m.
- Maximum frame width 1.2 m
- The floor stays completely clear
- Slides to one side
- Suitable for balconies and smaller bays

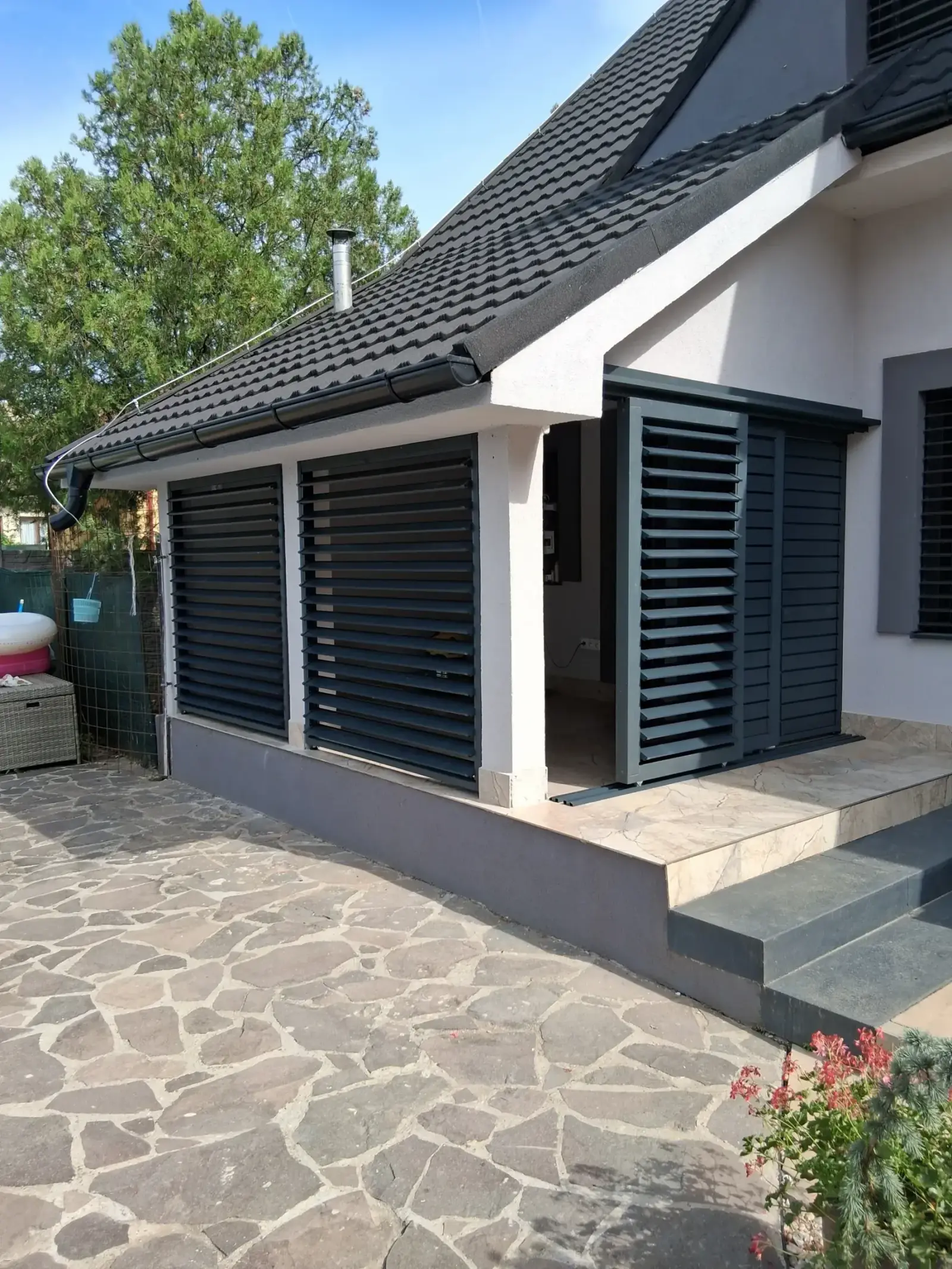

Bottom guide
The frame is guided at the top and bottom, so it can handle larger sizes and more bays. Most often it is a single row in which the frames slide to the sides – left or right, depending on where you want it open at the moment. Two rows one behind the other are another option: the frames then slide behind each other and open up a larger part of the bay. The bottom profile is mounted on the floor surface; we do not recess it into the paving.
- Maximum frame width: wood 1.5 m · aluminium 2 m
- One row: frames slide left and right
- Two rows: frames slide behind each other and open up a larger part of the bay
- Bottom profile on the surface, not recessed into the paving

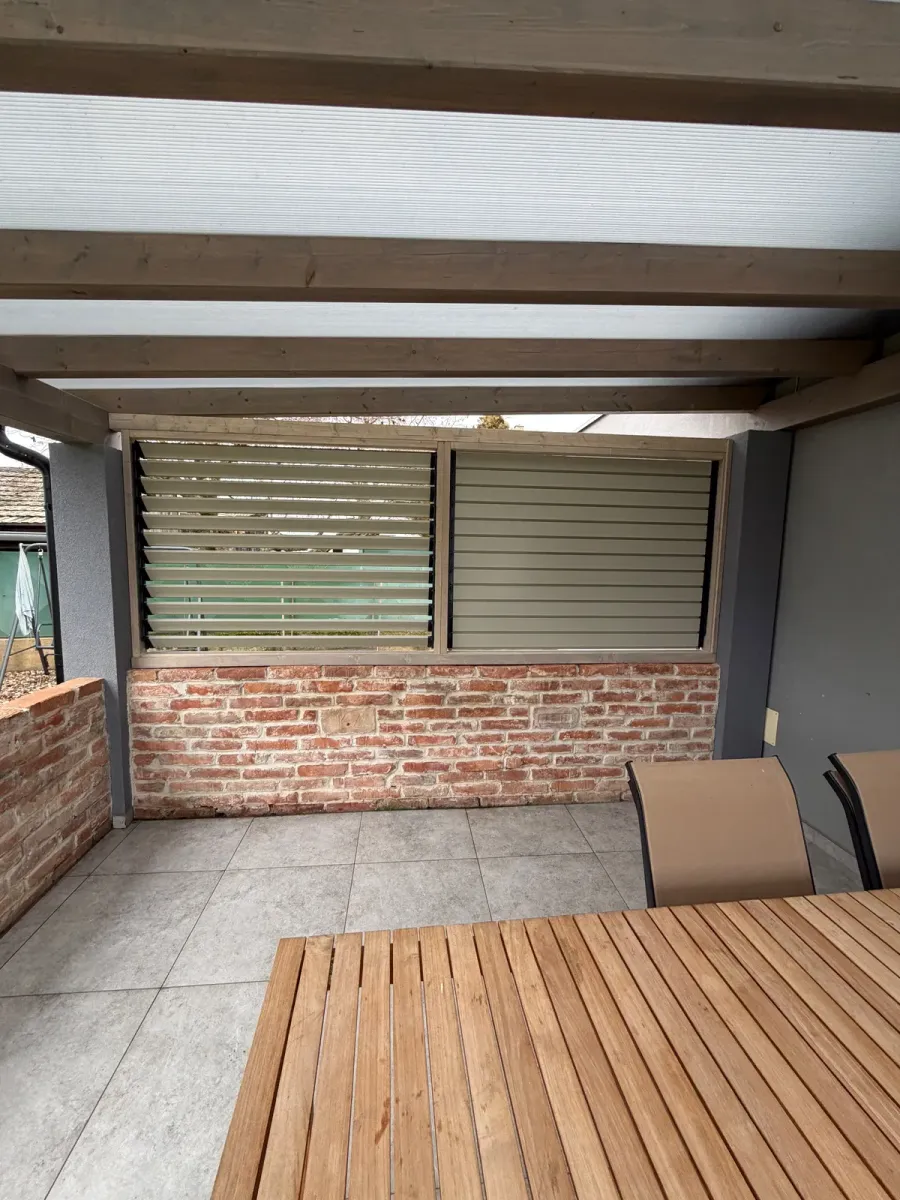

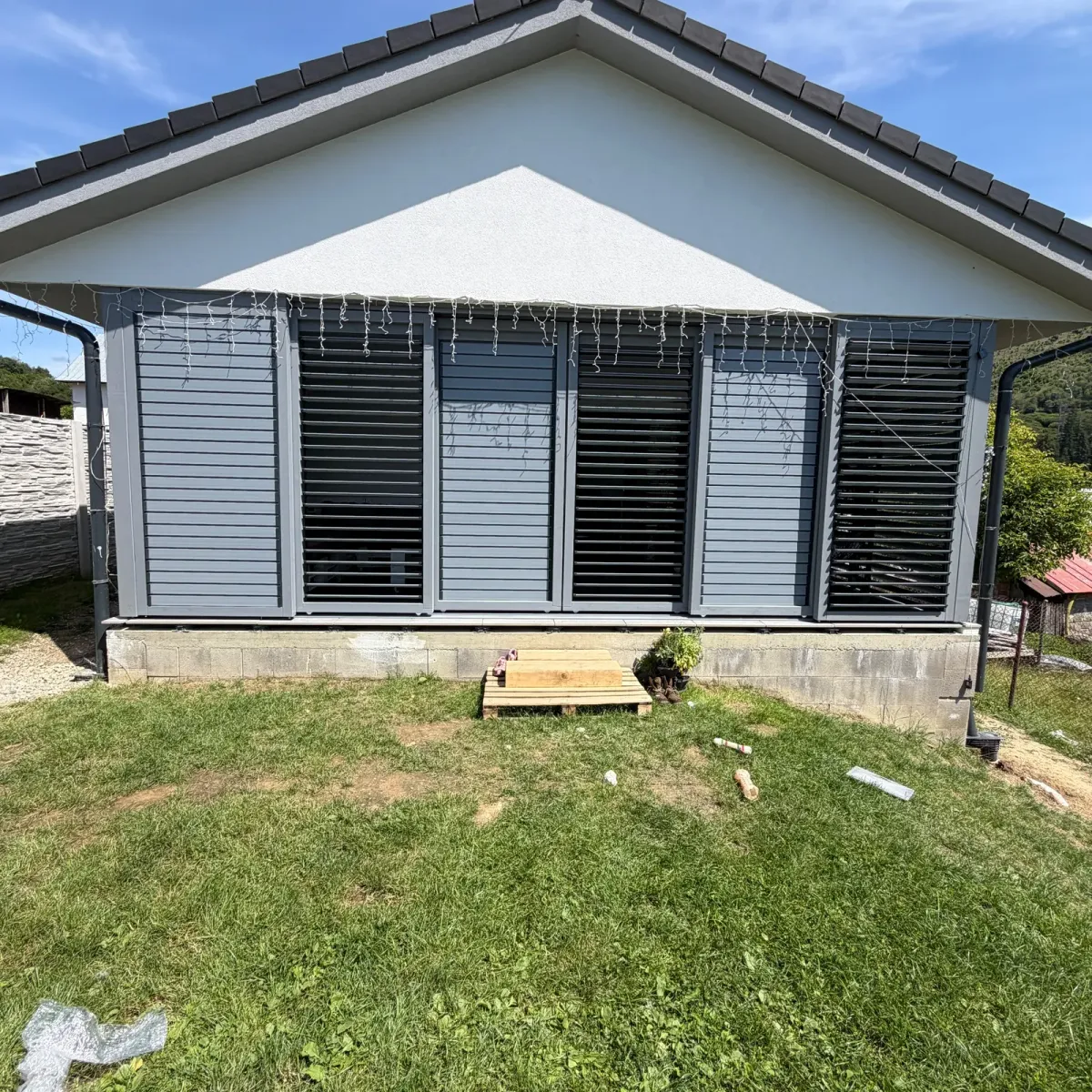

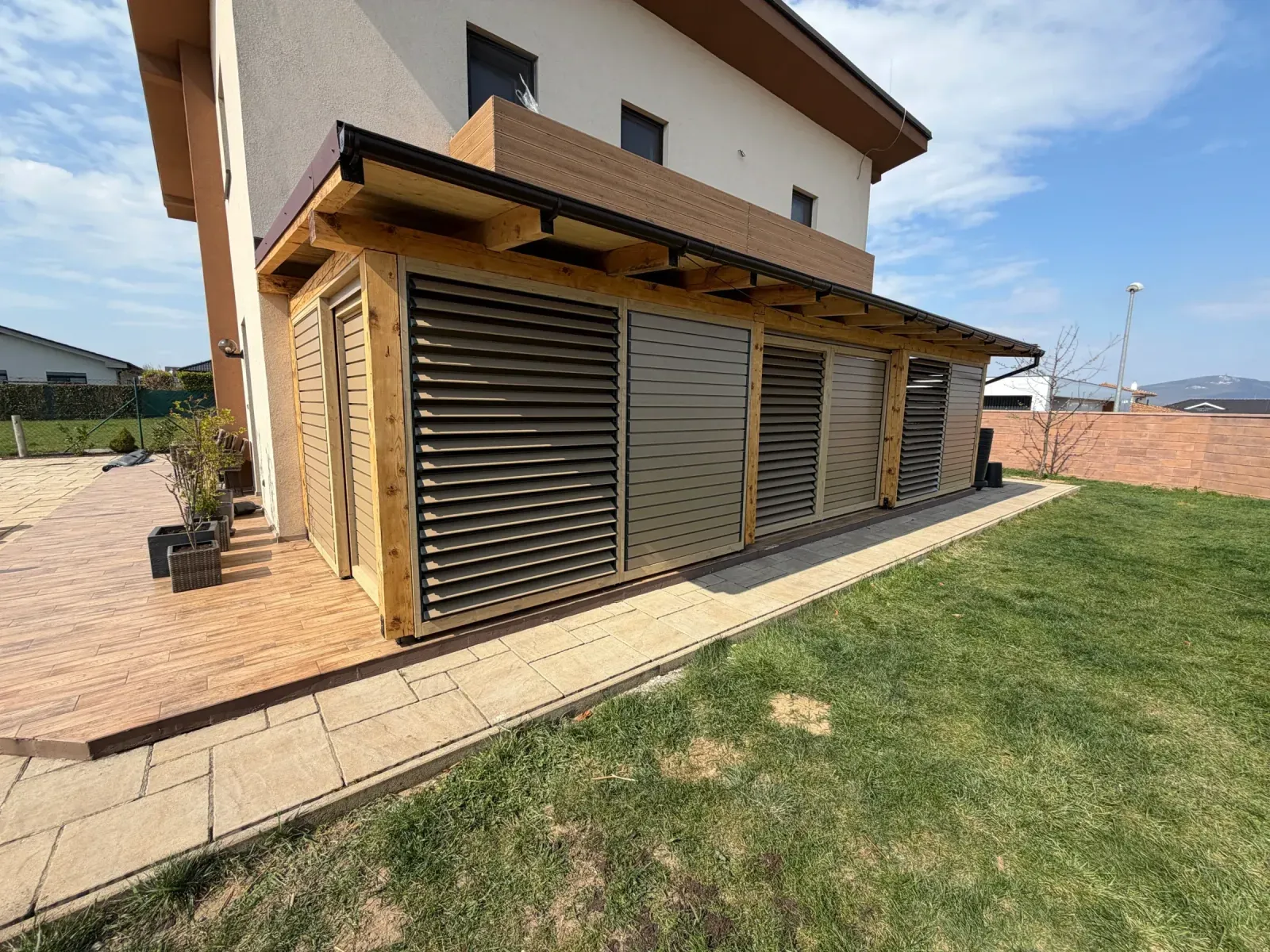

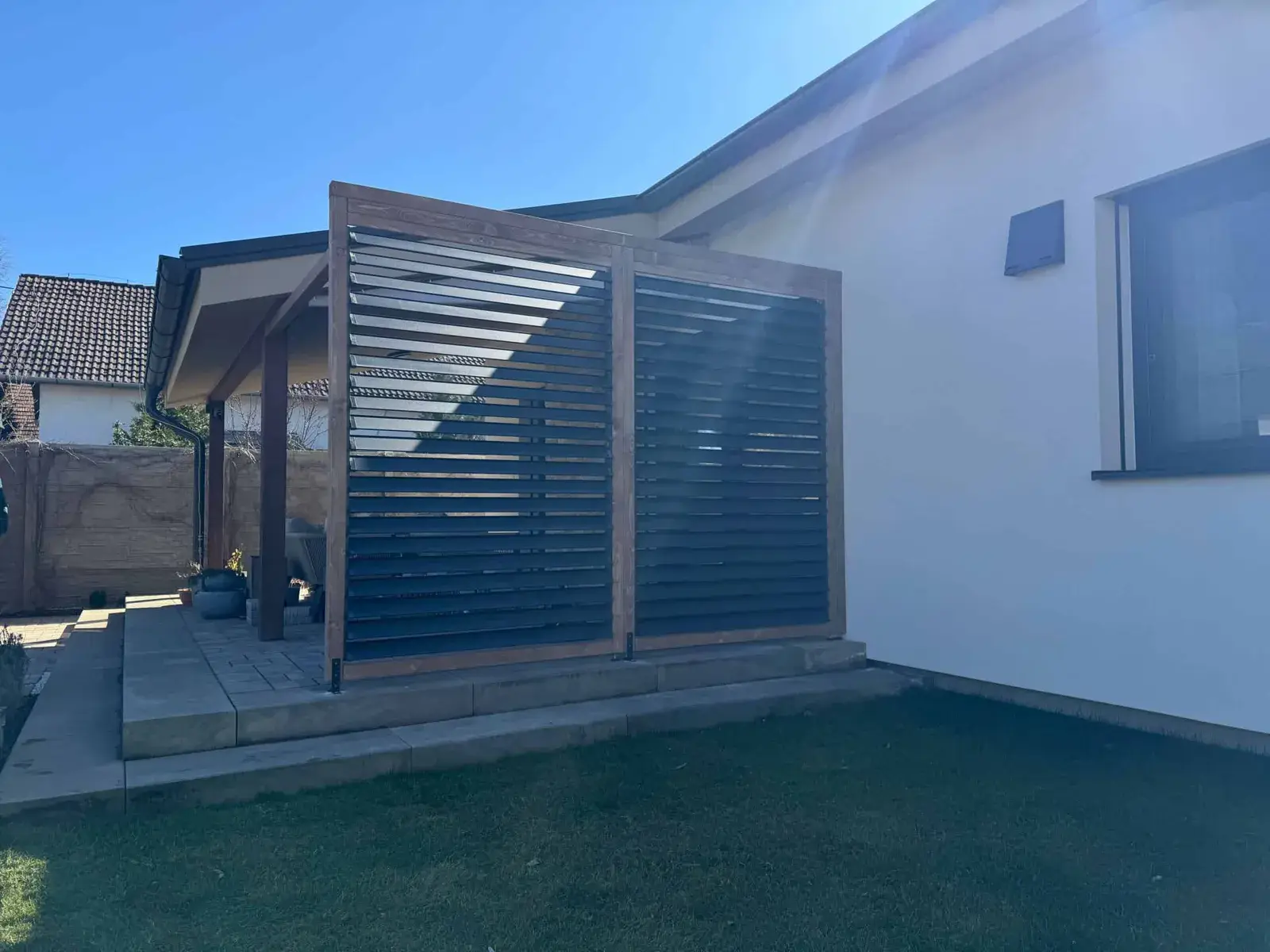

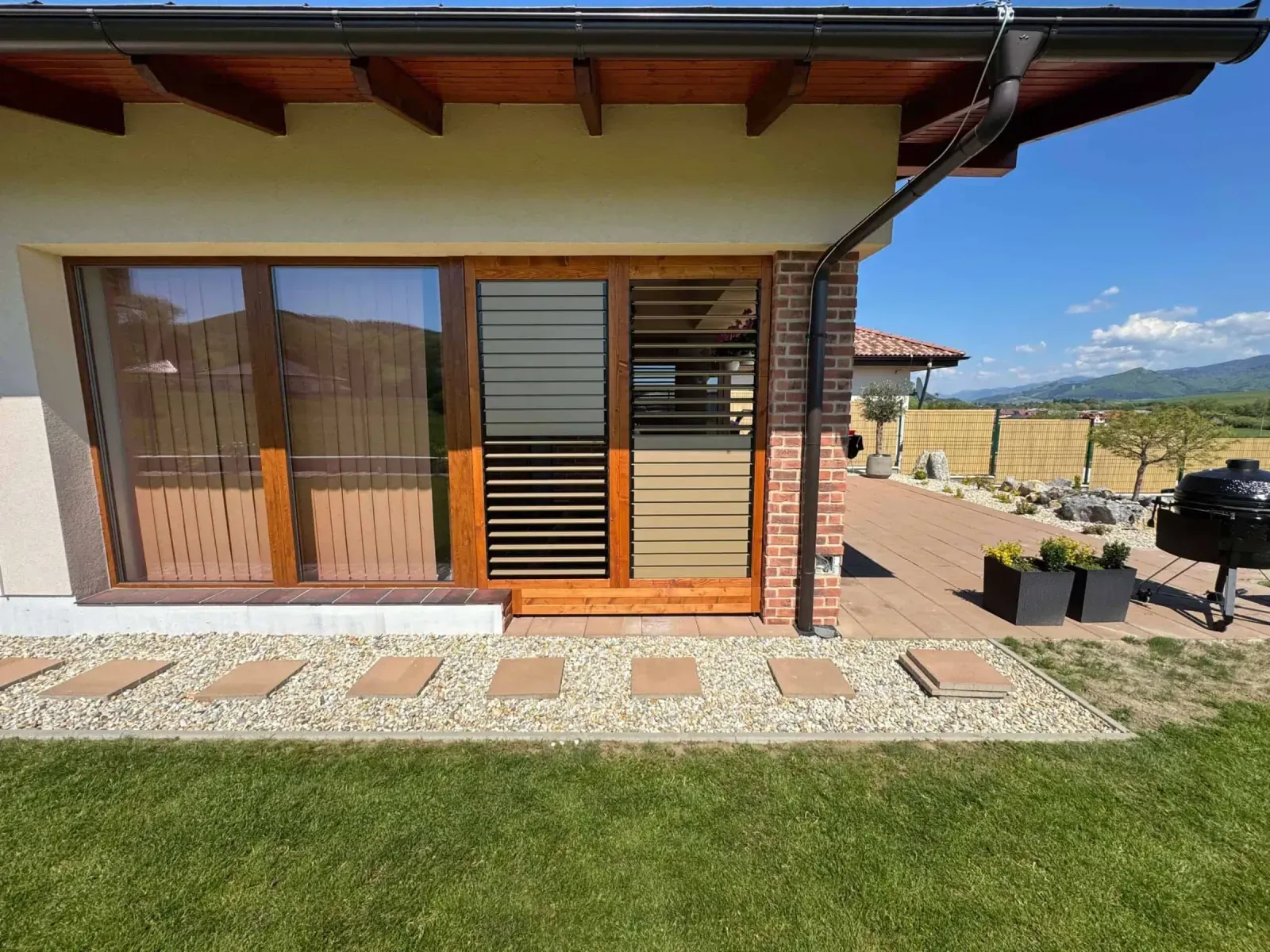

Gallery

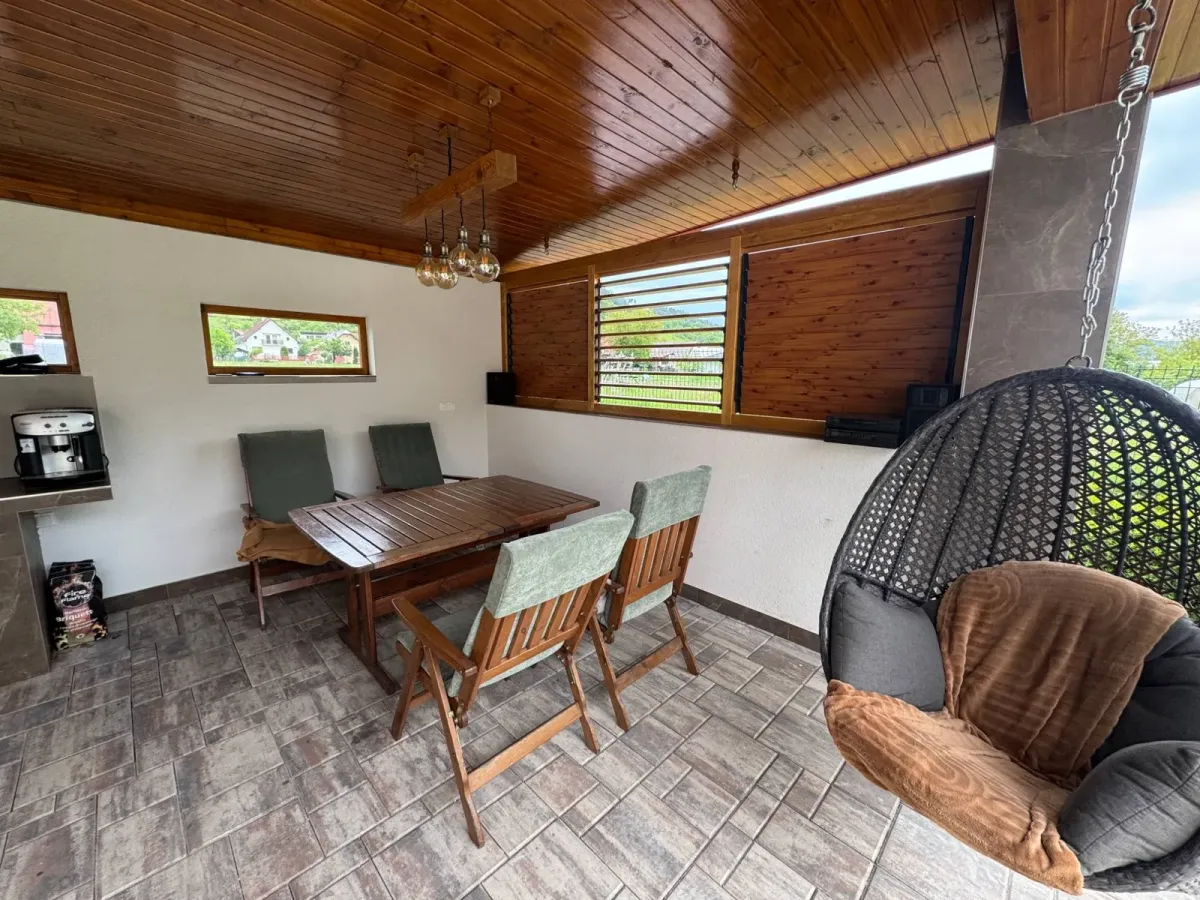

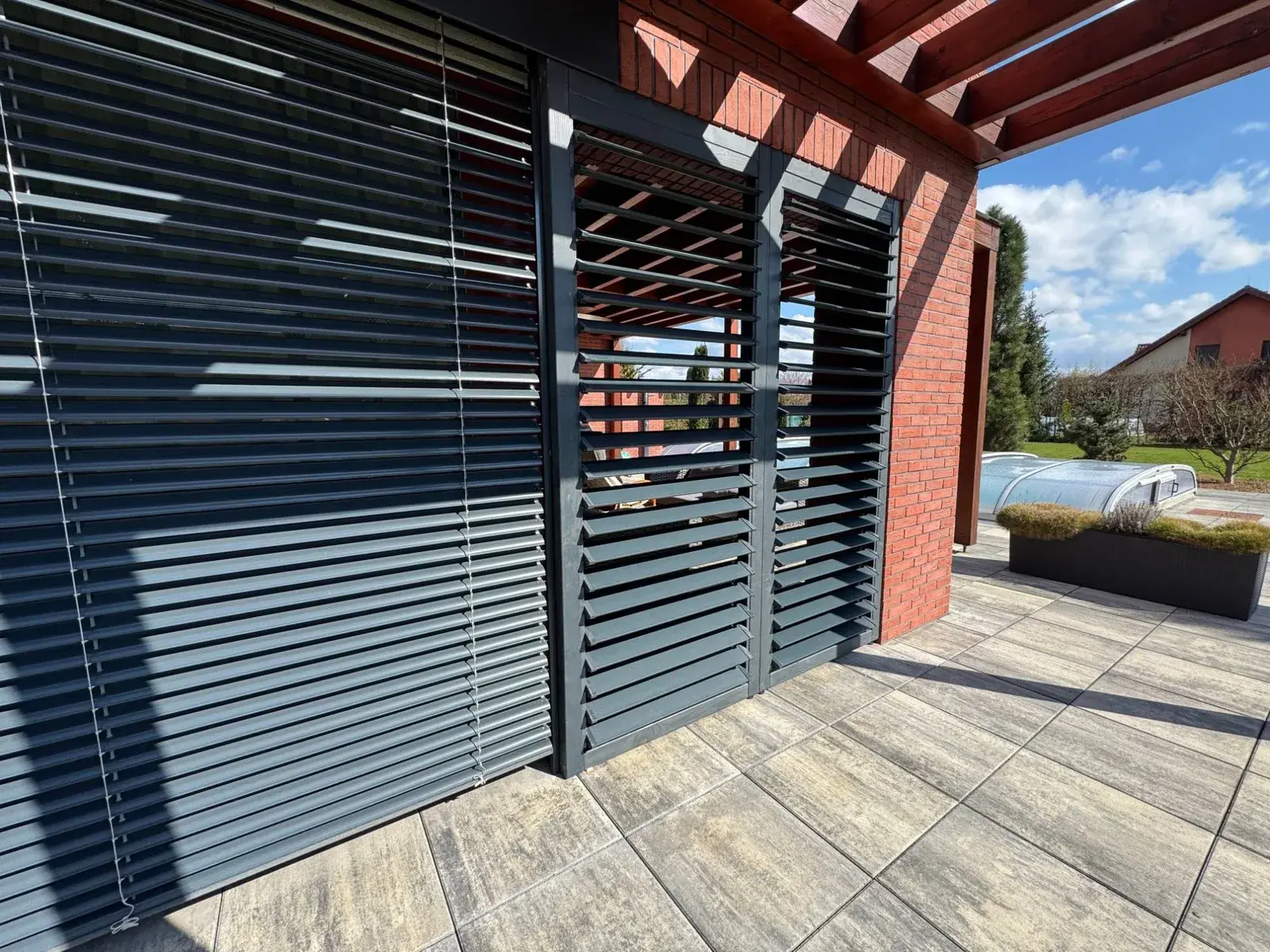

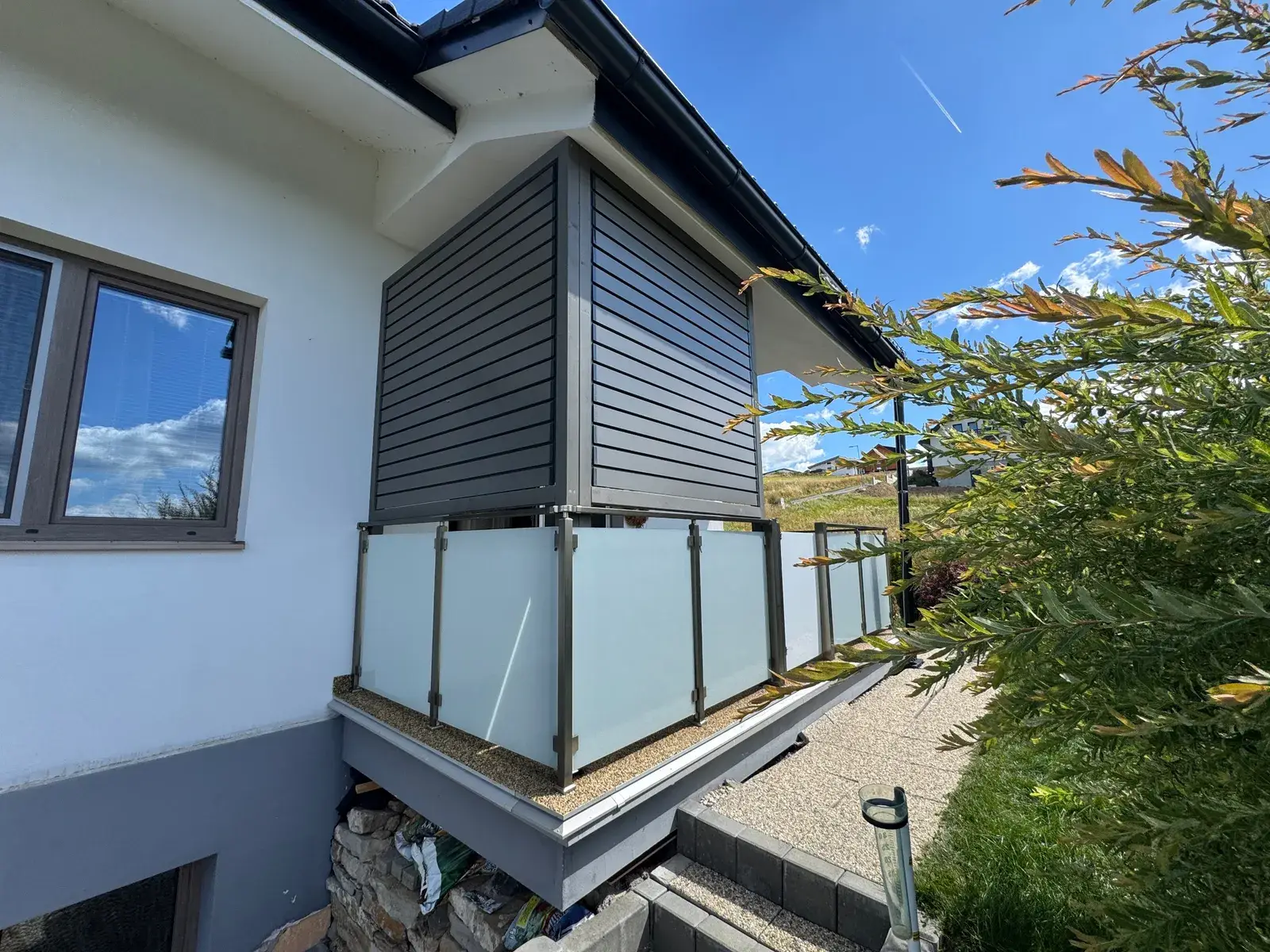

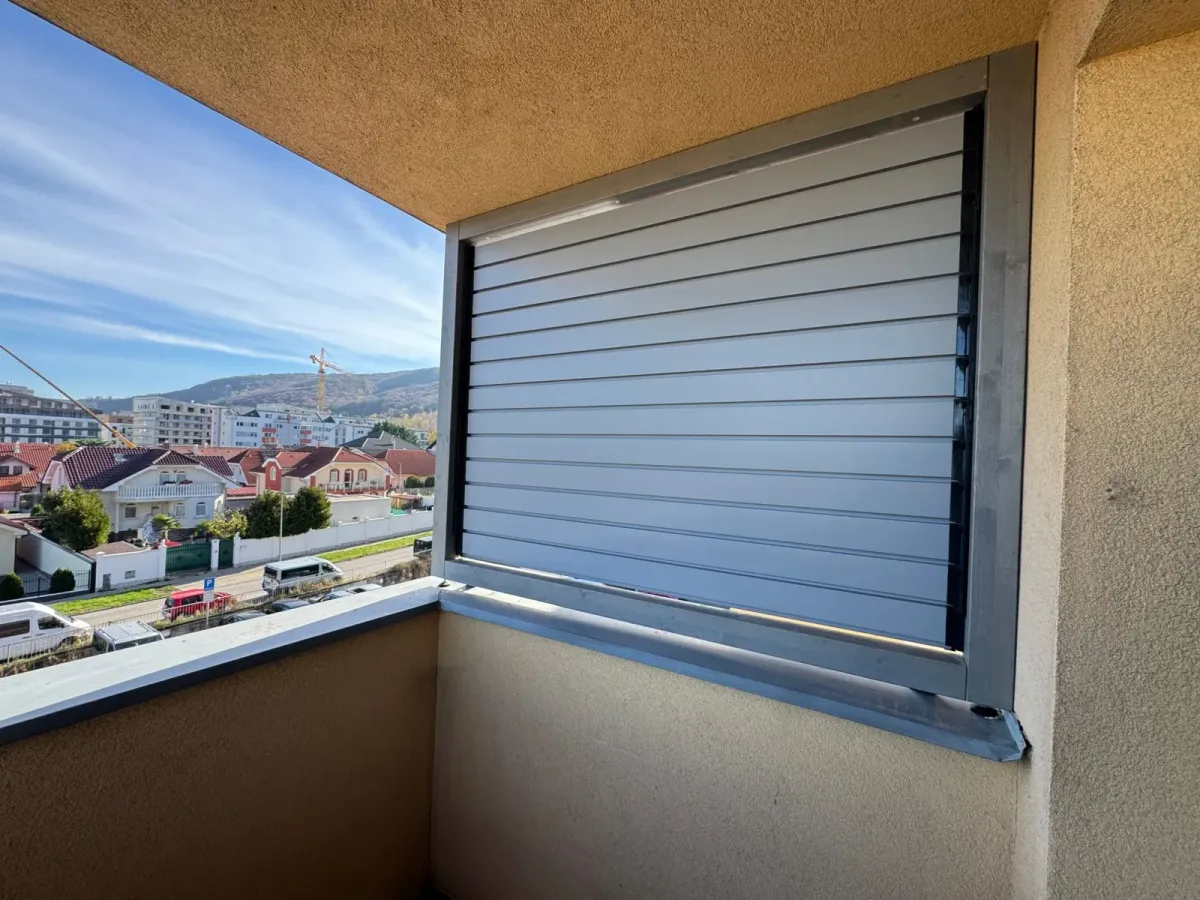

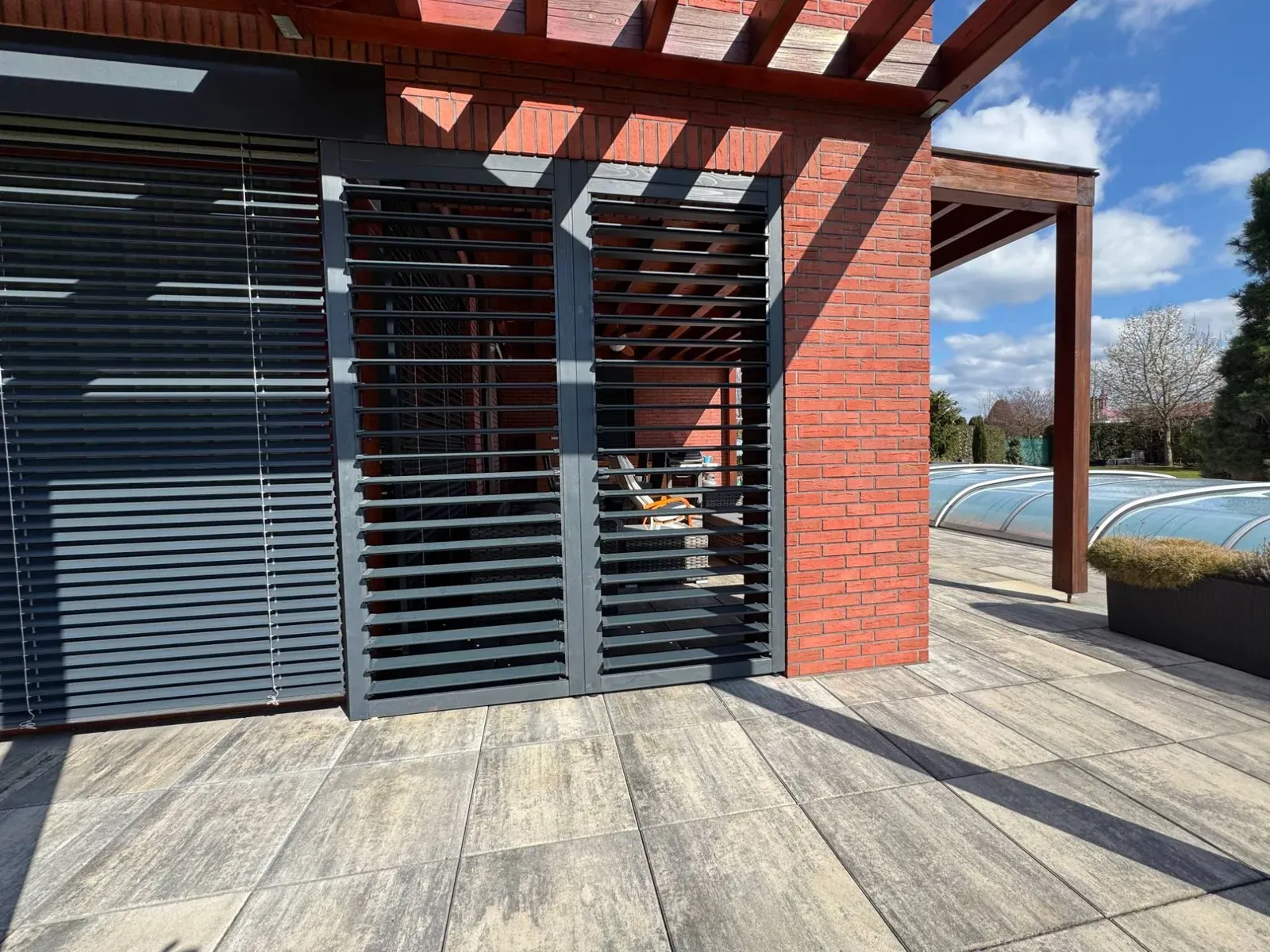

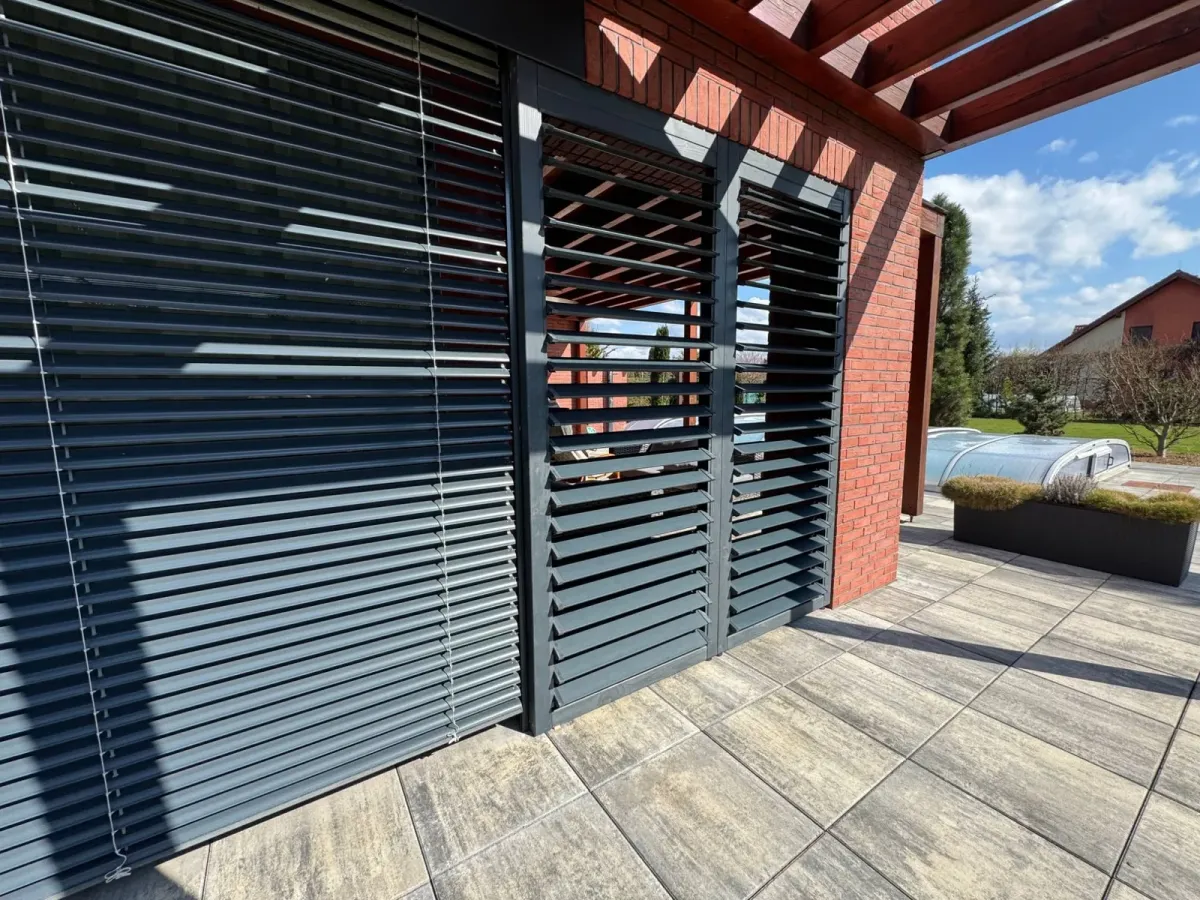

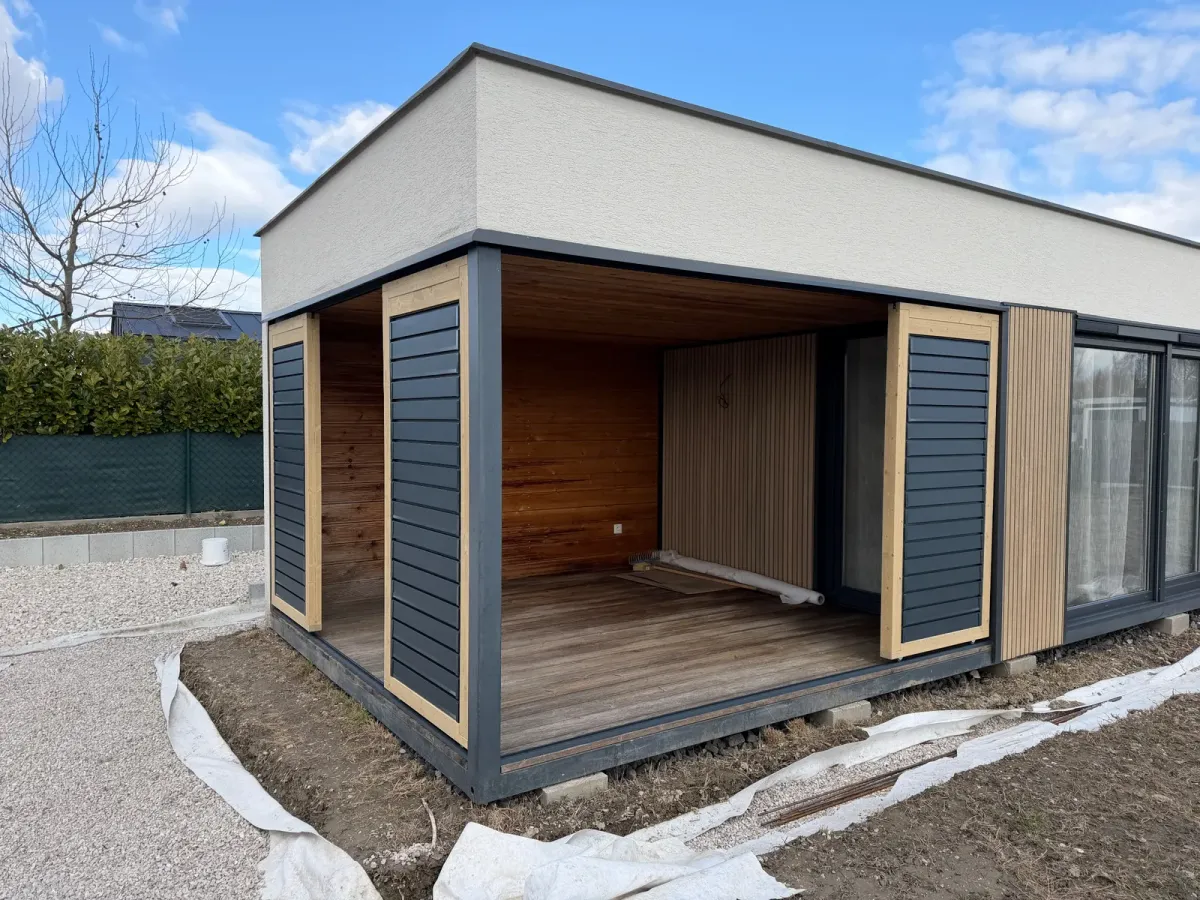

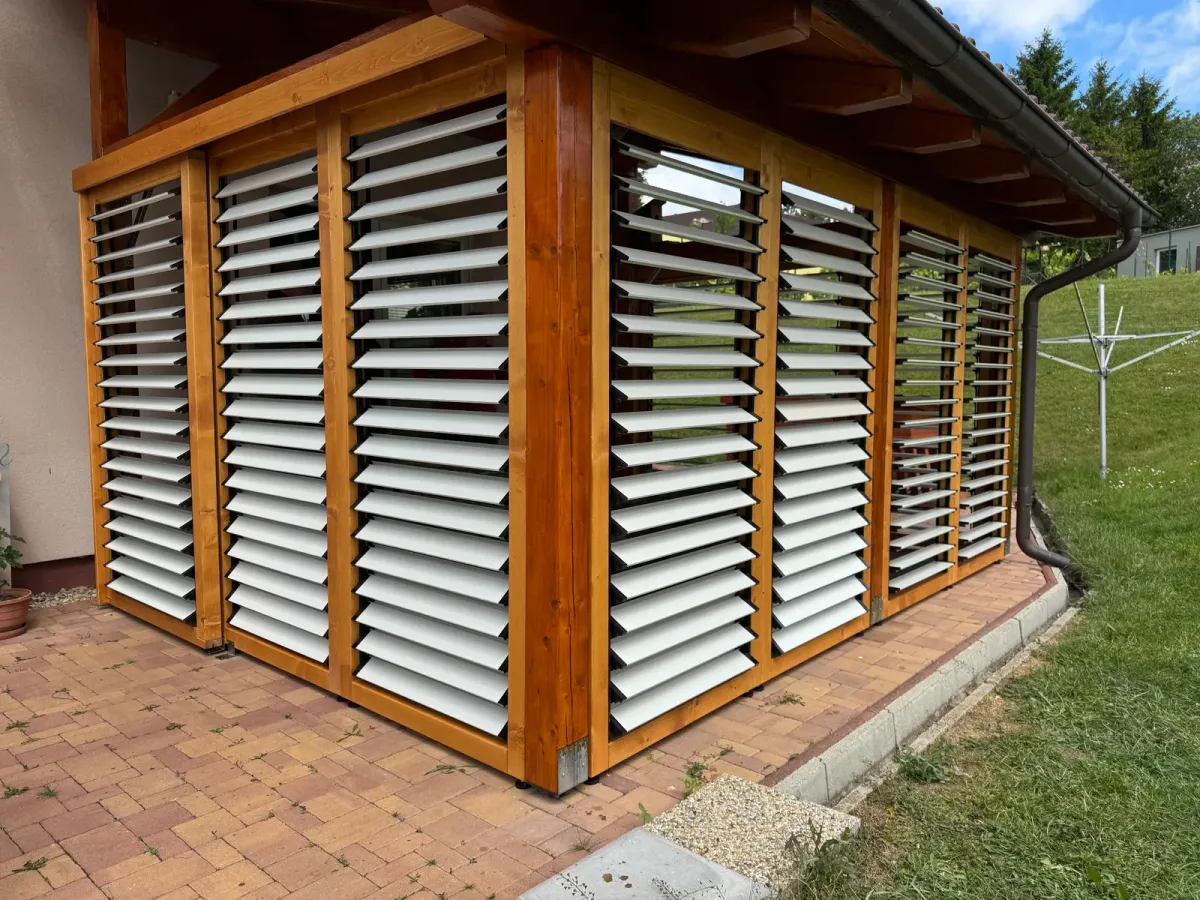

Combined louvre projects
See how a wooden frame with aluminium louvres looks in practice on our customers' pergolas.
Wooden frame shades
Choose your frame colour
We recommend treating the wooden frame with a stain. The Grey Protect series is a modern take on oil-based wood finishes.
Grey shades · HK-Lasur 3-in-1 Grey Protect
Show more grey shades
Wood shades · HK-Lasur 3-in-1
Show more wood shades
Remmers colour options HK-Lasur 3-in-1 and the silvering HK-Lasur 3-in-1 Grey Protect. On-screen shades are approximate – ask for a physical sample card for an exact match.
Recommended RAL colours
Choose your louvre colour
These are the colours we recommend from the RAL chart for aluminium louvres. If you have not found a colour you like, send us its code and we will check availability.
Dark shades
Beige and sand
Show more RAL colours
Mid greys
Brown shades
Light shades
Wood-effect finishes · for classic louvres
The colour on your screen may differ from the actual RAL colour. For an exact match, ask for a physical colour chart – we will bring it to the measurement visit.
From design to installation
Your project in expert hands
Depending on the season, it is finished within 4 to 10 weeks – at the lower end out of season, at the upper end in spring and summer.
Consultation and design choice
Send us a photo of your pergola and its dimensions. We will help you choose the louvre type and recommend a stain shade for the frame and a colour for the louvres.
Tailored quote
We prepare a detailed calculation with no hidden costs. The quote is free and without obligation.
Made-to-measure manufacture
We make the frame from BSH beams and treat it with stain. We coat the louvres in a wood-effect finish or a RAL colour of your choice.
Installation at your home
Installation is done by our own team. We anchor into the facade and into aluminium or wooden structures – insulated facades included.
Price
How much does it cost
Wooden frame with aluminium louvres
from €511
frame 1 × 2 m (width × height)
Prices are excluding VAT and installation. We will price your size in a quote.
Get a price quoteFAQ
All about this combination
Answers to the questions we are asked most often.
Why combine a wooden frame with aluminium louvres?
What needs maintenance?
What is the maximum louvre length?
Can the louvres come in a wood-effect finish?
Won't the wood get damp from the paving?
Are the louvres screwed on?
How much does it cost?
What is the warranty?
