Made-to-measure bioclimatic pergolas for your terrace.
More time outdoors. Shade and light the way you want.
A bioclimatic pergola with rotating aluminium louvres lets you change the shade and how open the roof is throughout the day. Let the sun in in the morning, create shade at midday and close the louvres when it rains.
At Flowgarden we design your WIN CLIMATIC S500 pergola around your terrace, the orientation of your house and how you want to use the space. Including measurement, supply and installation, with the option of side shading or sliding glazing.
To start, all we need is approximate dimensions, the location and a photo of the terrace.
Protect your space
What bothers you on your terrace?
What helps
What helps
What helps
How it works
What is a bioclimatic pergola and how does it work?

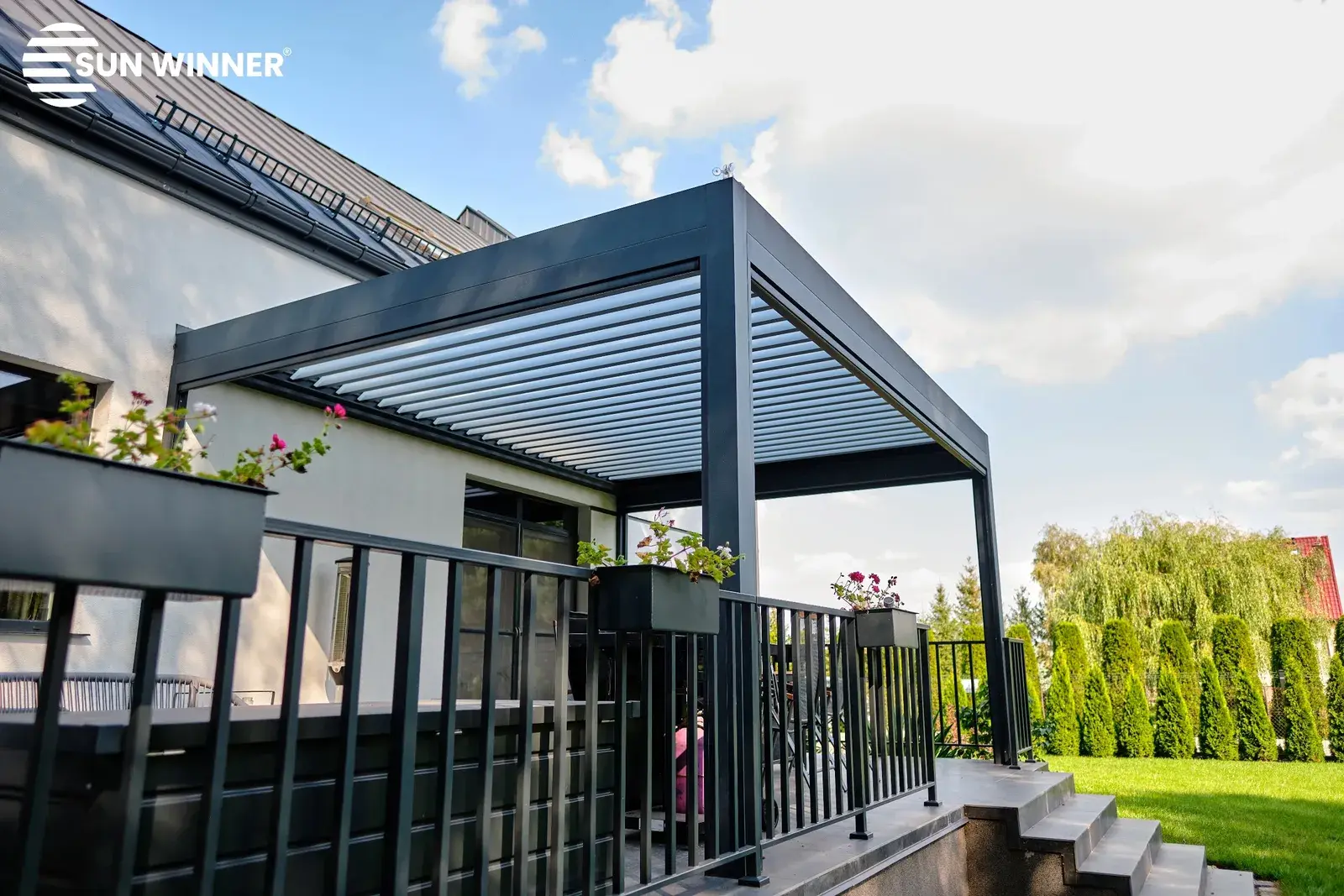

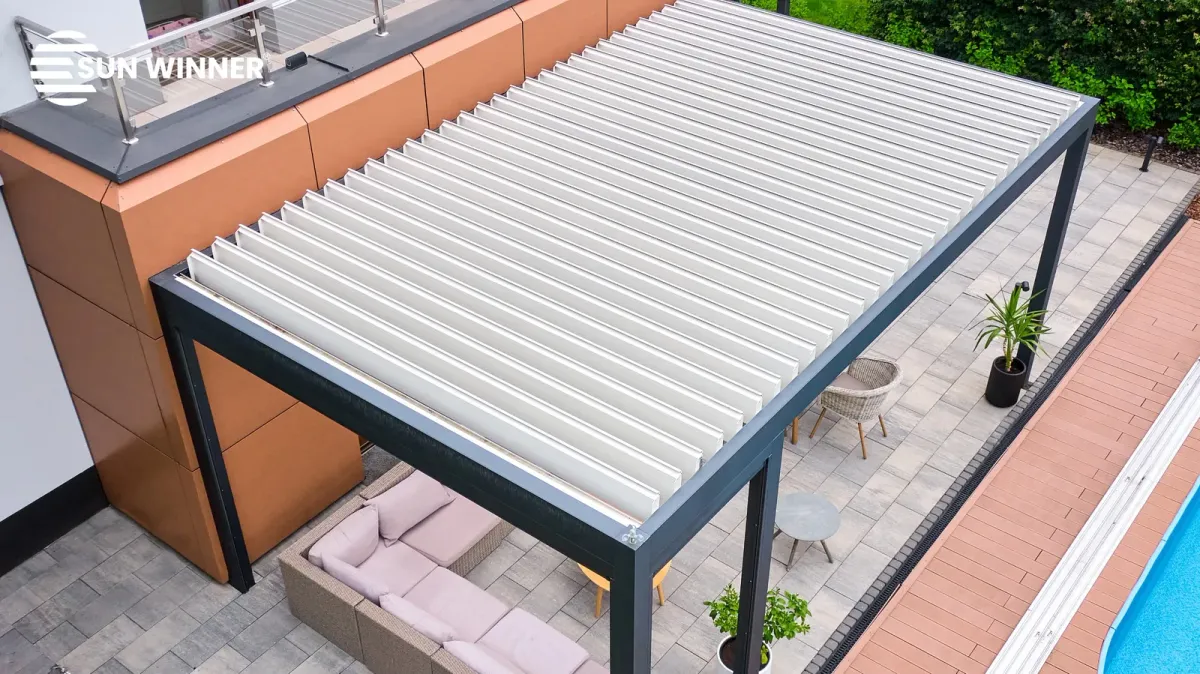

A bioclimatic pergola is a terrace roof made of rotating aluminium louvres. By tilting the louvres, you set both the shade and the airflow. When closed, the roof protects from rain and the water drains away through the gutters and posts.
Shade that follows the sun
The louvres tilt from 0° to 135°. You adjust the shade without moving your seating.
Ventilation
Warm air escapes through the half-open louvres while the shade remains.
Cover when it rains
Water runs off the louvres into the gutters, not under the pergola.
Evenings outdoors
LED lighting, heating and speakers can all be built into the pergola.
System
WIN CLIMATIC S500: an aluminium pergola with rotating louvres.
WIN CLIMATIC S500 is a bioclimatic pergola system by the manufacturer SUN WINNER. It combines a structure of powder-coated extruded aluminium, stainless steel components and a motorised louvre roof.
| Feature | What it lets you do |
|---|---|
| Louvre tilt 0–135° | Adjust how open the roof is and the direct shade |
| Motorised control | Change the louvre position comfortably with a remote |
| Integrated drainage | Drain rainwater from the closed roof |
| Attached to the house or free-standing | Design the pergola to suit the terrace location |
| Modular configurations | Cover larger areas too |
| Side shading and sliding glazing | Add protection to suit the orientation and use of the space |
Key data
| Item | WIN CLIMATIC S500 |
|---|---|
| Roof | made of rotating aluminium louvres, tilted by a motor from 0° to 135° |
| Dimensions | one module up to 5 × 8 m (40 m²), over 76 m² by joining modules |
| Drainage | rainwater drains through the gutters and posts |
| Profiles | top frame 240 × 130 mm, post 130 × 130 mm, louvre 286 mm |
| Height | 2.8 m as standard, 3.2 m maximum |
| Certificate | CE according to EN 1090, a solution protected by the manufacturer's patents |
| Warranty | 2 years, 5 years on the motor and controls |
We assess the dimensions, number of posts, anchoring and extras for each specific configuration. The design also includes matching the pergola colour to the facade, windows and other exterior elements.
Location
A pergola by the house or free-standing in the garden.

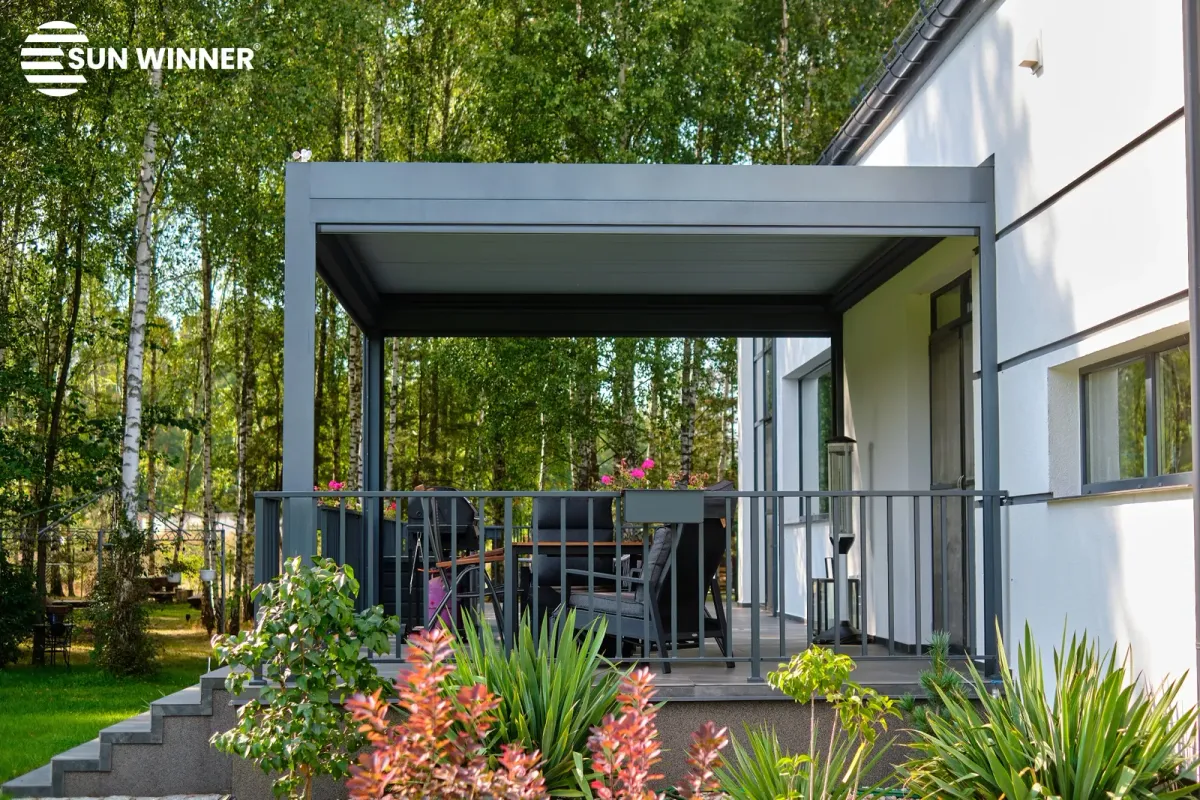

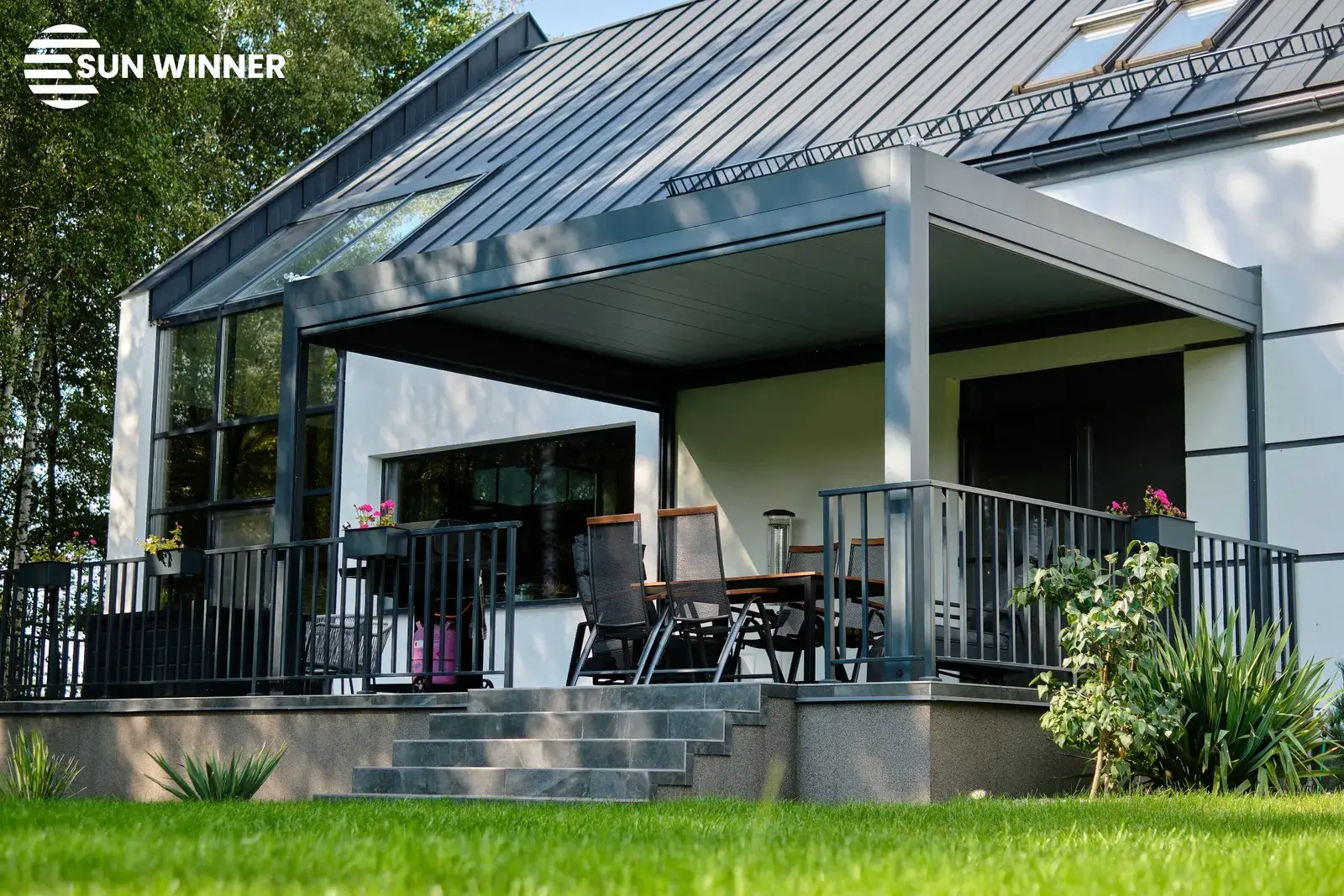

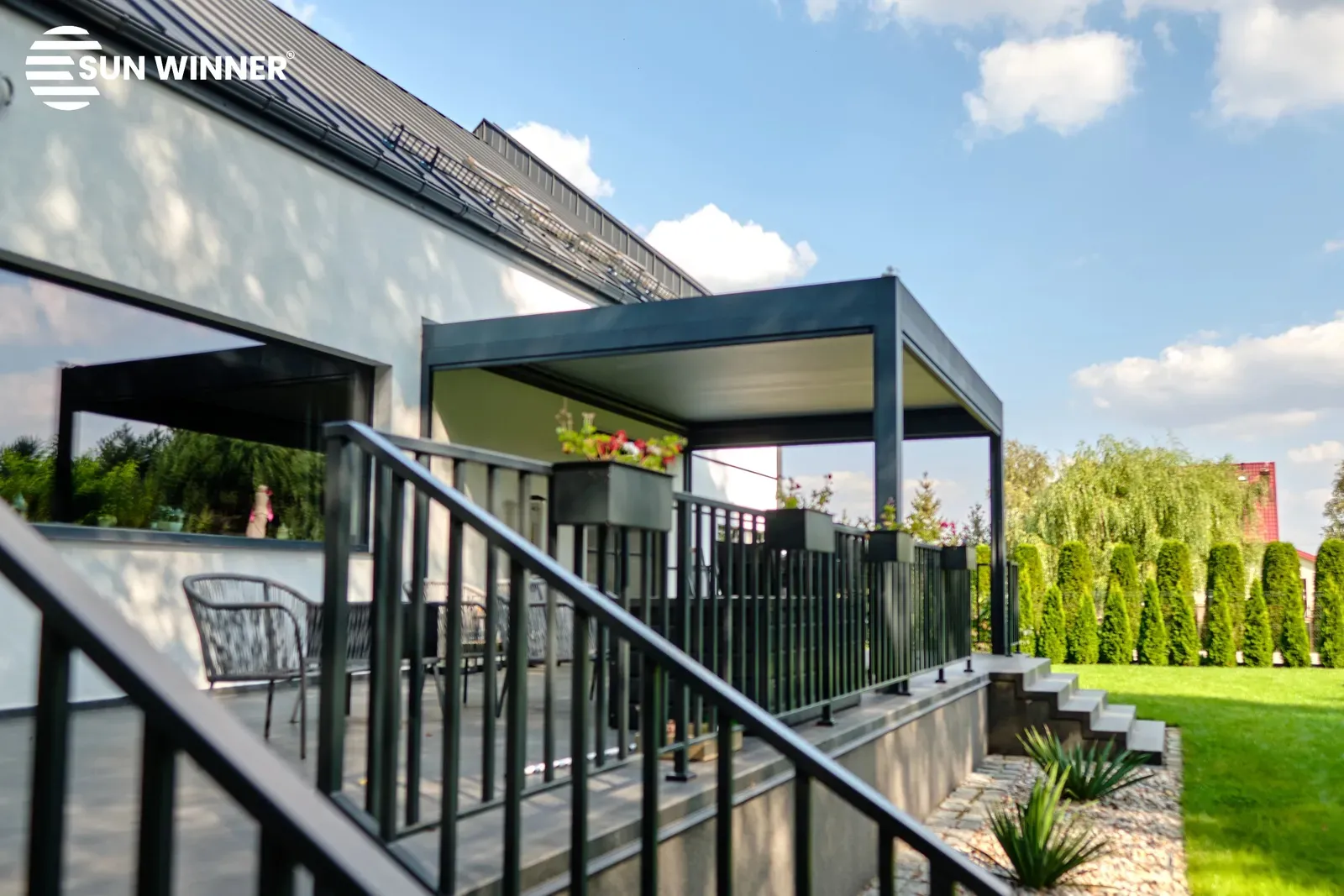

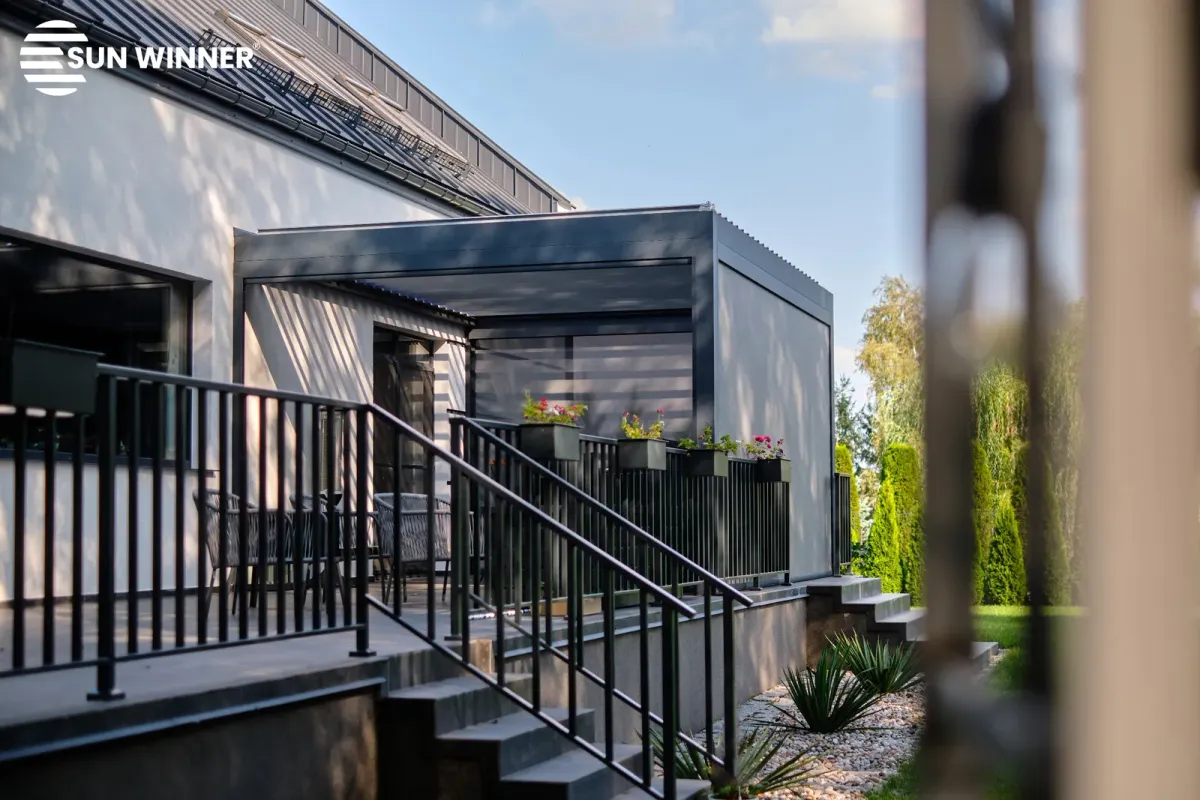

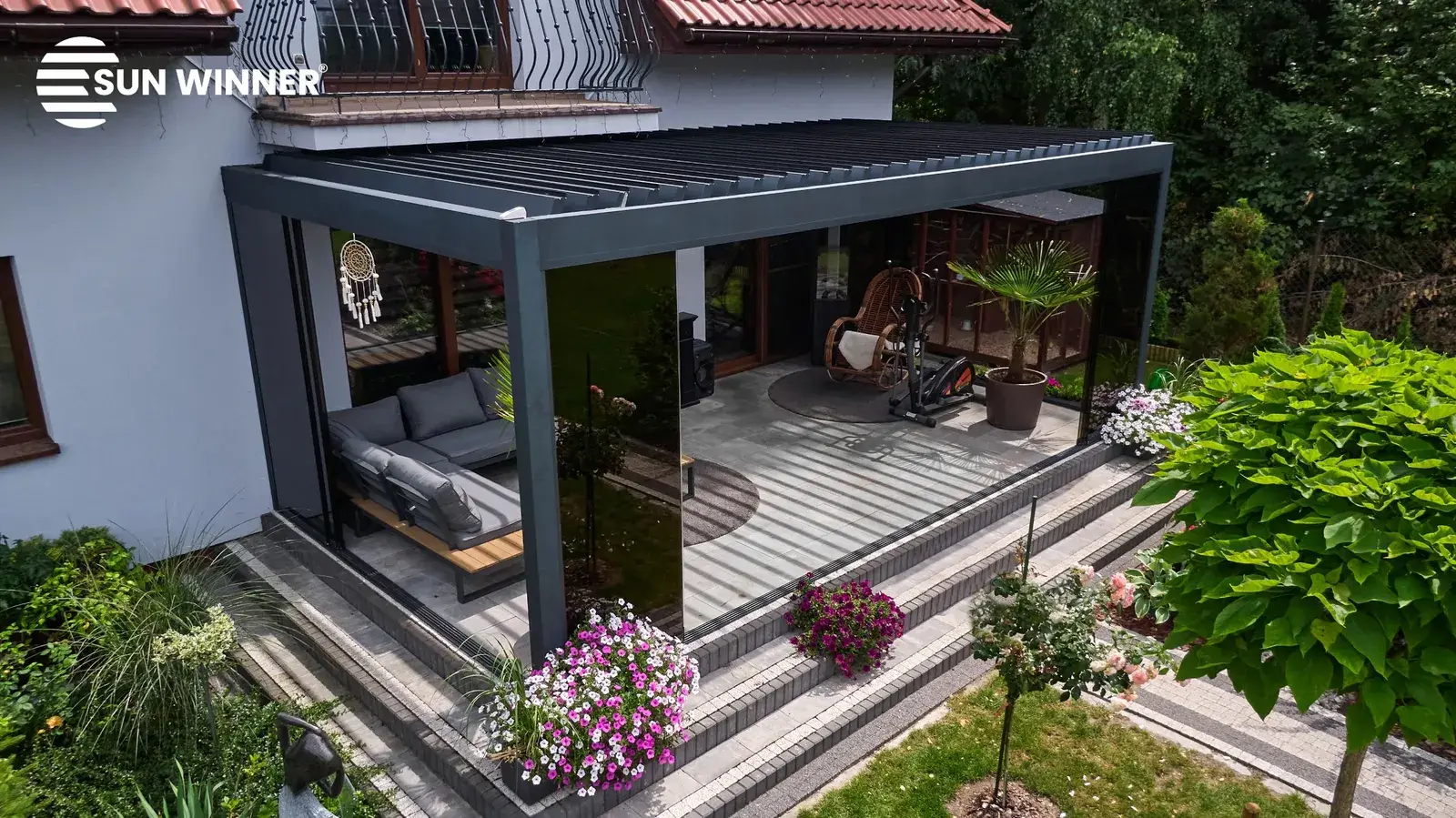

Bioclimatic pergola attached to the house
A pergola by the house naturally extends the living room or kitchen. In the design we take into account the door height, the facade, the anchoring options and the direction in which the louvres open. It is also important to think about how the roof will affect daylight in the adjoining room.

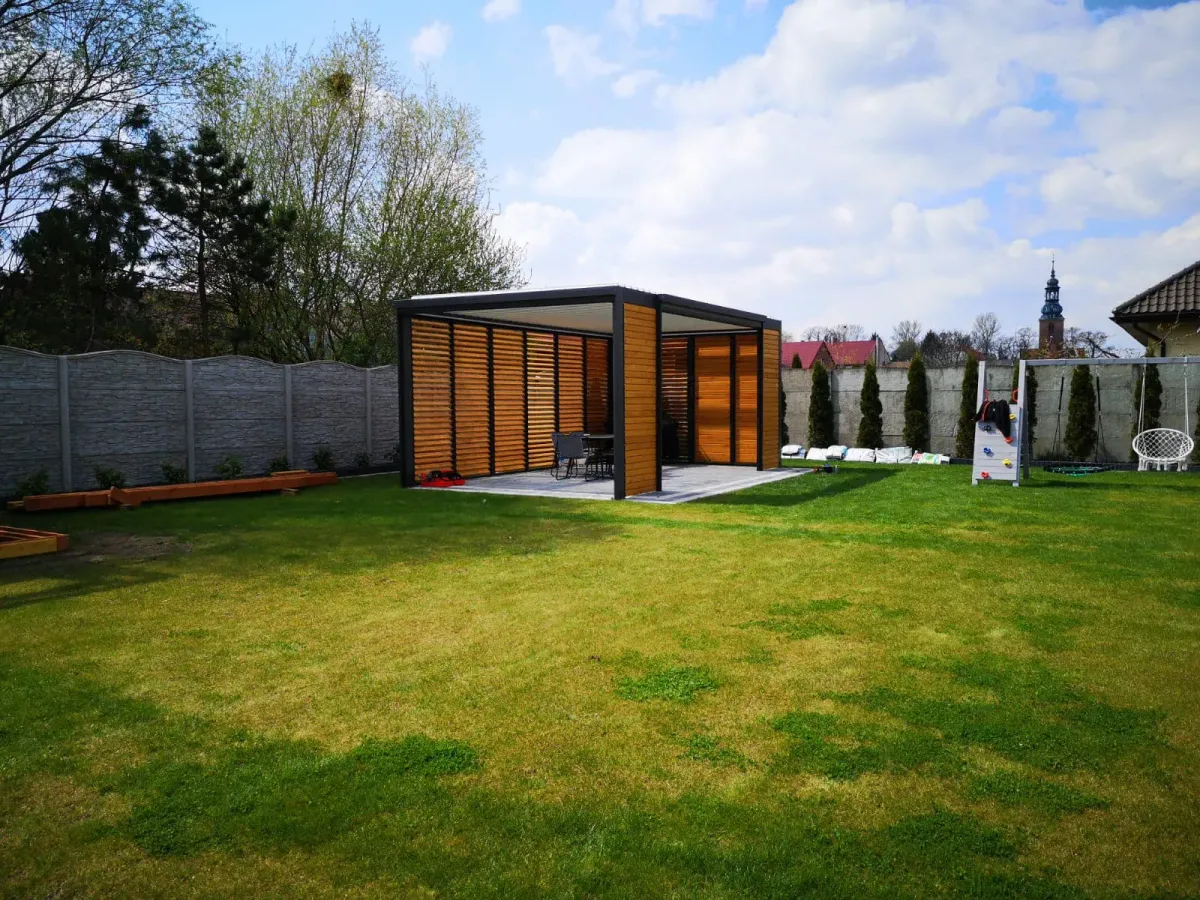

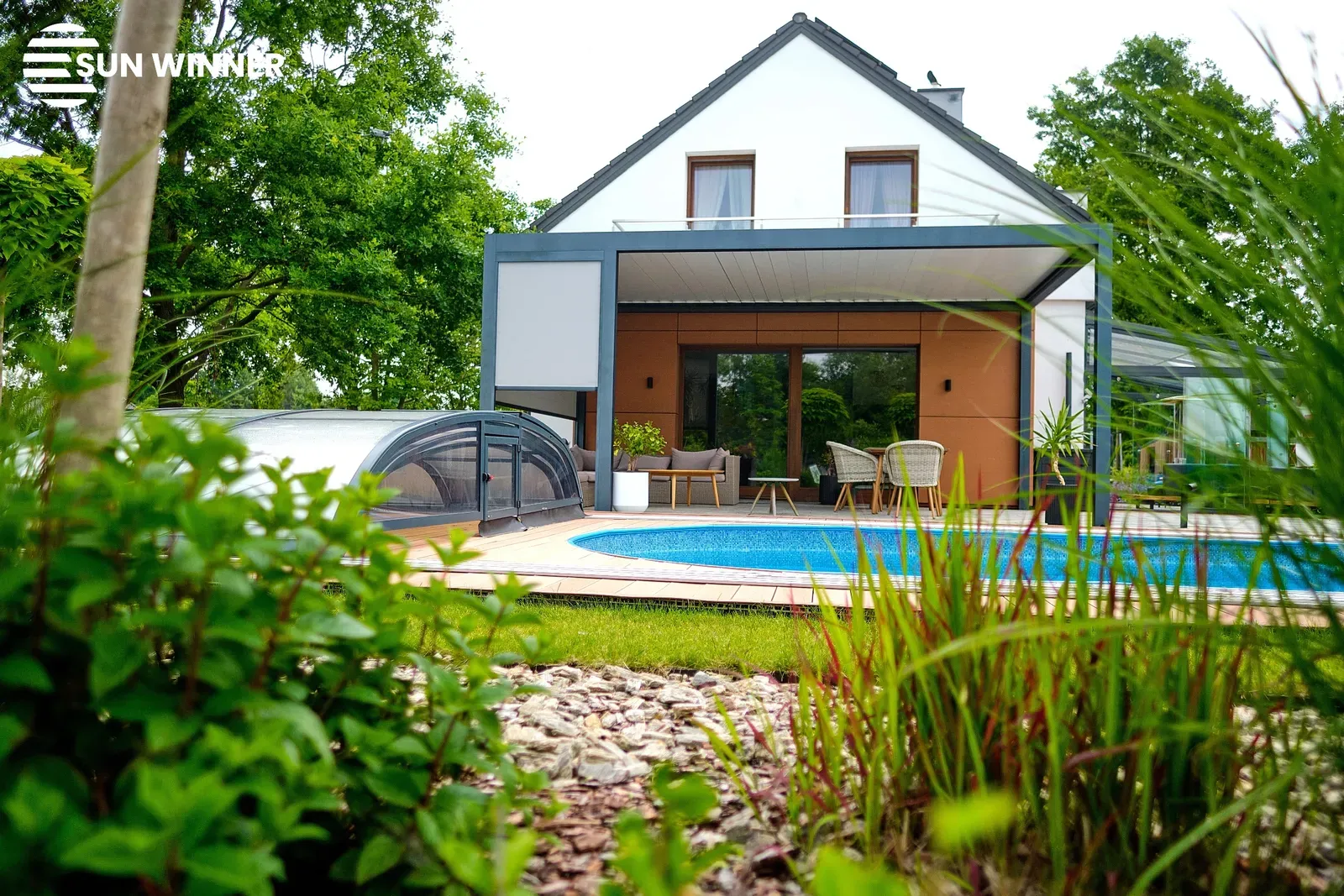

Free-standing pergola
A free-standing pergola creates a place to sit in the garden or by the pool. We design the post positions and foundations to suit the chosen model, the base and the layout of the plot.
A solution for a larger terrace
For a larger space, several modules can be used. We divide the roof and supports to match both the technical possibilities of the system and the planned furniture layout.
Shading and glazing
Choose to suit your terrace.

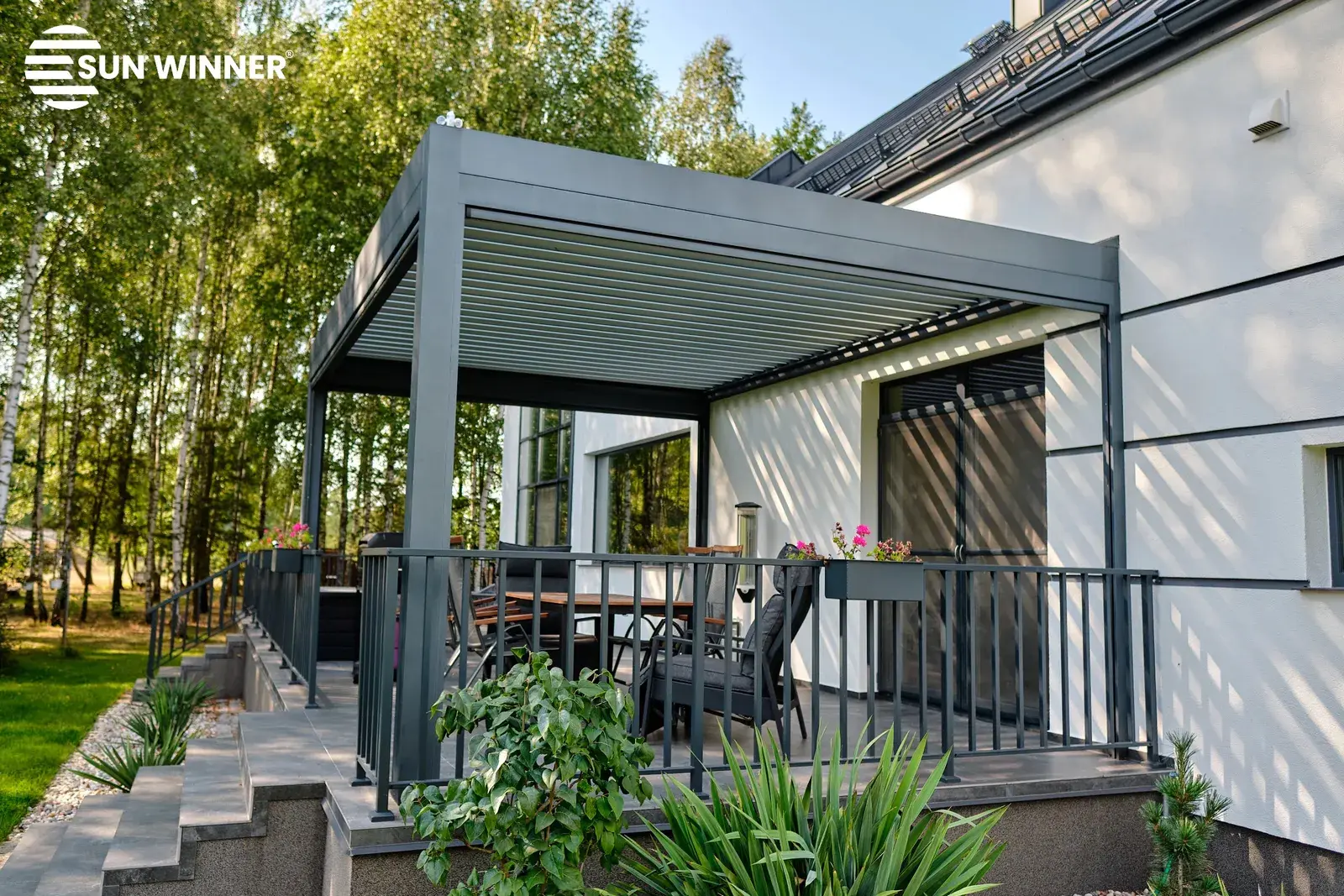

The roof deals with the sun from above. For low afternoon sun, privacy or wind, the sides of the pergola matter too. That is why we recommend planning them from the first design.

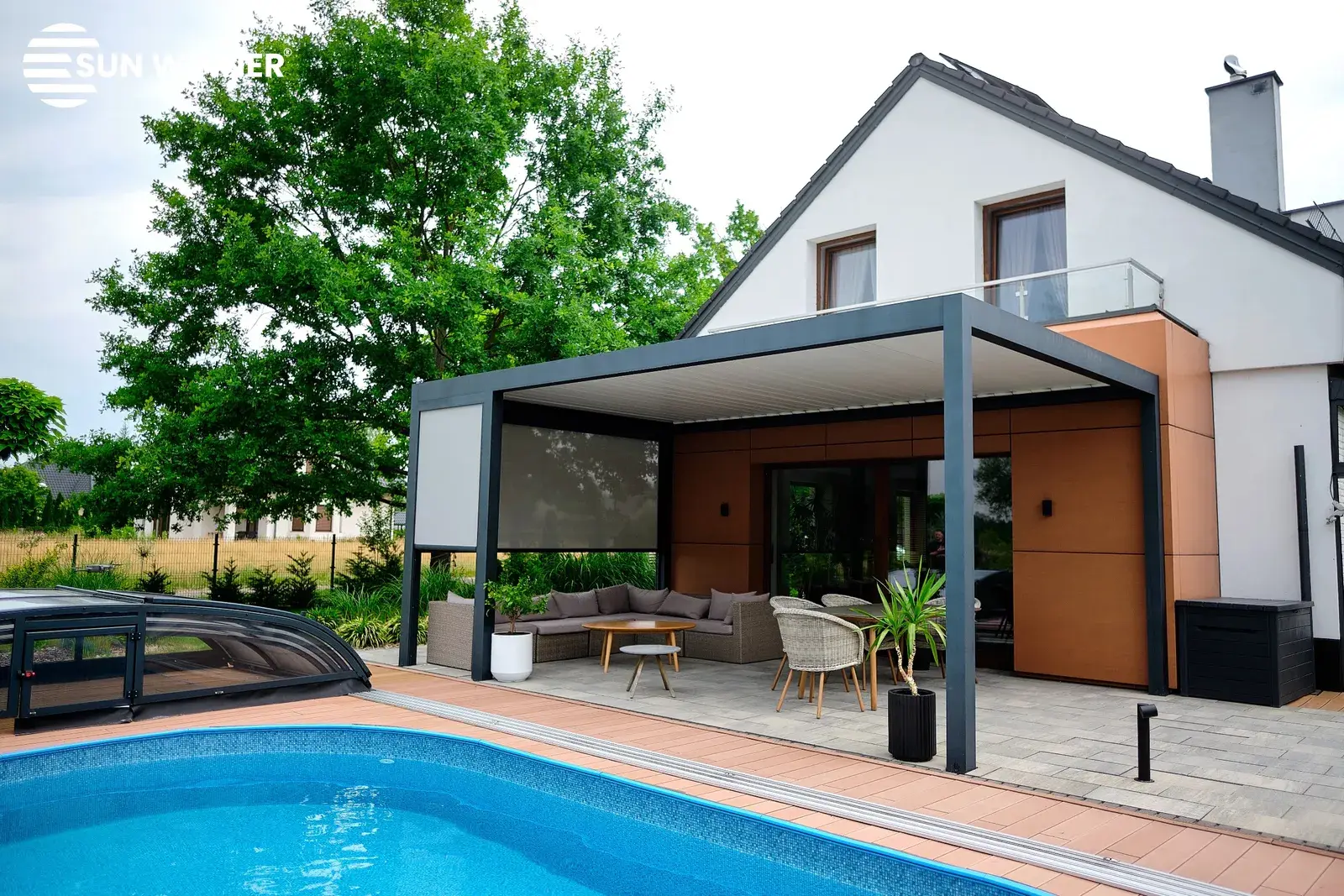

WIN SCREEN screen blinds
Screen blinds help reduce sun coming in from the side and glare under the pergola. How see-through they are and how much privacy they give depends on the fabric chosen and on the difference in light between the terrace and its surroundings.
WIN GLASS sliding glazing
Sliding glass panels add protection from wind and rain coming in from the side. When you want to open the space, you slide the panels aside. When choosing them, we take into account the opening width, the number of panes, the sliding direction and the space needed to park them.

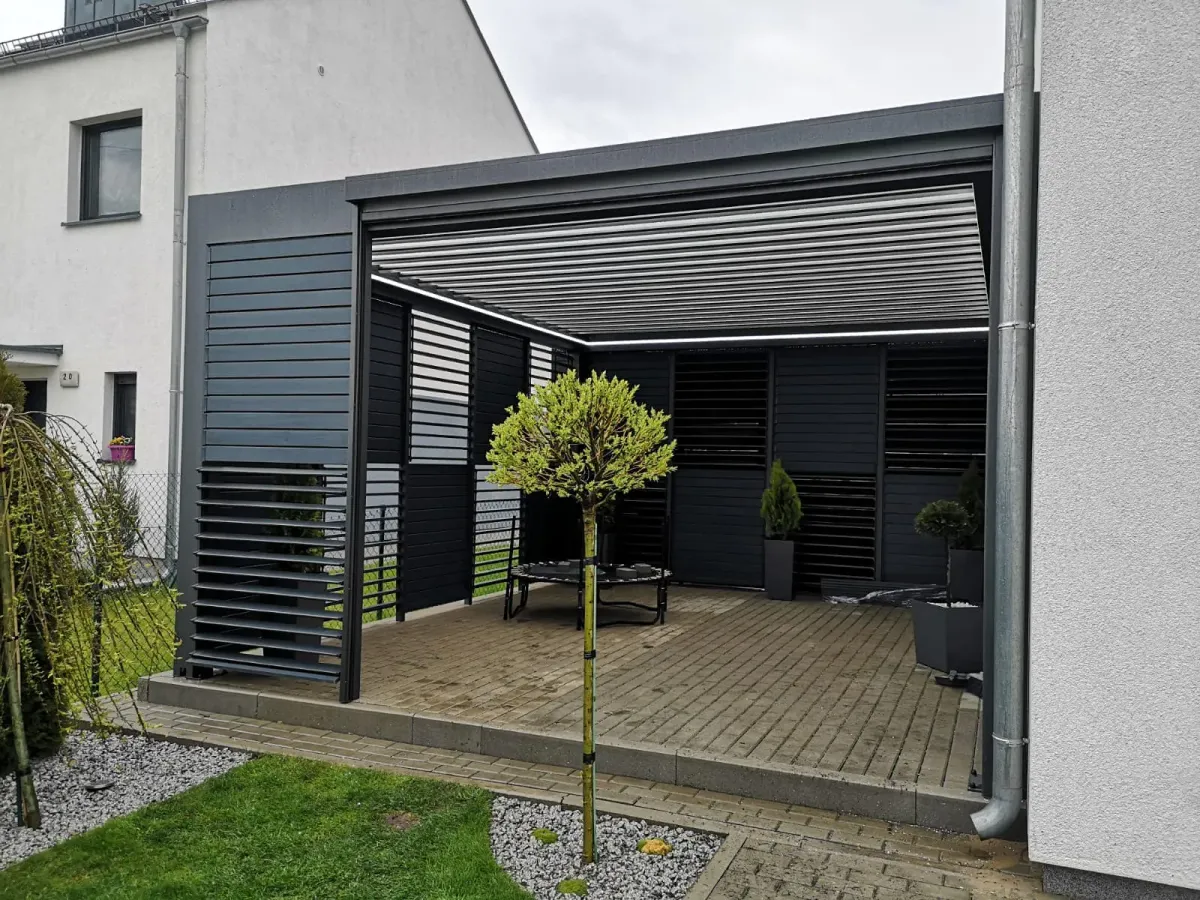

WIN PANELS panels
Aluminium panels with fixed or rotating louvres (0° to 90°), fixed or sliding in one to three tracks. One panel up to 1.8 × 2.8 m.
Extras
Light, warmth and music built into the pergola.
For the S500 pergola you choose extras that the manufacturer builds into the structure. Cables, motor and speakers stay hidden.
LED lighting
LED strips in the louvres or in the gutter, spotlights in the louvres and in the frame, a light in the post. White light 3000 K or 4000 K, as well as coloured RGB and RGBW.
Weather sensors
The rain sensor closes the louvres. The wind and snow sensors open them so the roof does not catch wind or snow. Below 3 °C the temperature sensor opens them slightly so they do not freeze.
Heating
Infrared heaters rated at 1 500 to 4 000 W heat roughly 10 to 25 m². They work best with screen blinds or glazing.
Speakers
Two 25 W speakers hidden in the frame. Play music from your phone via Bluetooth.
Control from your phone
A remote control is included. With a smart unit, you control the roof, lights, blinds and heating from your phone from anywhere, or via Somfy io.
Socket and USB
A 230 V socket or USB right in the pergola post.
Insulated louvres
Insulation inside the louvres improves comfort in heat and cold and dampens the sound of rain.
Colour of your choice
Two colours are included: cream white and anthracite. Another 17 colours from the manufacturer's palette, any RAL colour or a wood effect are available at extra cost.
Included
- Cream white, textured ≈ RAL 9010
- Anthracite, textured ST-1 ≈ RAL 7016
Textured and metallic, at extra cost
- Warm Stone, metallic textured
- Grey beige, matt textured ≈ RAL 7039
- Brown, metallic textured
- Silver, metallic textured ≈ RAL 9006
- Black, textured ≈ RAL 9005
- Elegant Gray, matt textured ≈ RAL 7043
- Anthracite, metallic textured ST-2
- Anthracite, metallic textured DB 703 ST-3
- Brown mood, metallic textured
Smooth matt, at extra cost
- White, matt RAL 9016
- Cream, matt RAL 1013
- Champagne Gold, metallic ≈ Anoda C31
- Brown, matt RAL 8019
- Silver, matt RAL 9006
- Classic silver, metallic ≈ RAL 9022
- Anthracite, matt RAL 7016
- Black, matt RAL 9005
On-screen colours are approximate. We will show you the exact shade in the colour chart.
Why Flowgarden
Why plan your pergola with us.
Roof and shading in one design
Pergolas and outdoor shading are what we do. So in the design we also consider where the sun shines onto the terrace from, which sides you want to keep open and where you need more privacy.
Designed for your actual terrace
What matters are the dimensions, the base, the connection to the house and how you plan to use it. Together we choose the configuration that suits these conditions.
From measurement to installation
We take care of the design, measurement, supply and installation. The quote lists the chosen pergola and the agreed equipment, so you know what the solution includes.
You can read more about planning a pergola and side shading together in the article Pergolas with louvres.
Process
How the design and installation work.
You send us your idea
Approximate dimensions, the location and a photo of the terrace or a drawing are enough. Tell us whether you want the pergola attached to the house or free-standing and which extras interest you.
We design a solution and prepare a quote
We go through the options for the roof, side infills and controls with you. We prepare a no-obligation quote for the chosen configuration.
We check the dimensions and site readiness
Before installation, we verify the exact dimensions, anchoring, base, power supply and water drainage. We agree on the necessary terrace preparation and the date.
We deliver and install the pergola
Once the final solution is approved, we deliver and install the pergola with the agreed accessories.
Get a quote
A premium pergola configured for your terrace.
The S500 is a premium system: concealed screws and motor, gutters in the frame, louvres that do not drip water under the pergola, and a QUALICOAT-certified coating.
The price depends on the size, number of modules, colour and extras: LED lighting, heating, sensors, speakers, screen blinds, glazing and panels. We prepare a quote tailored exactly to your terrace.
Wall-mounted pergola
from €6 557
size 3 × 2 m (width × depth)
Posts at the front, anchored to the façade at the back.
Free-standing pergola
from €7 315
size 3 × 2 m (width × depth)
Four posts, not anchored to the house.
Prices are excluding VAT and installation. The price includes the motor with remote control, drainage in the frame and a cream white or anthracite finish.
Projects
Get inspired by our projects.
Take a look at our pergola and outdoor shading projects. Notice the placement by the house, the colour combinations and how the sides of the terrace are handled.
FAQ
Frequently asked questions about bioclimatic pergolas.
What is the difference between a bioclimatic pergola and a pergola with a fixed roof?
Does a bioclimatic pergola protect from rain?
Can the louvres be fully retracted?
Can a bioclimatic pergola be glazed?
Does glazing turn it into a year-round conservatory?
What size can the pergola be?
What needs to be prepared before installation?
What maintenance does a bioclimatic pergola need?
How should the pergola be used in snow and strong wind?
When can the pergola be installed?
Interested in a quote? Write to us.
Send us a photo, approximate dimensions and the location. We will help you choose the roof, side shading and extras according to how you want to use the terrace.
No exact dimensions? An approximate width and depth are enough to start.
